Oxygenation Cone

An oxygenation cone is a closed hydraulic reactor, shaped like an inverted cone (wider at the top), used to efficiently dissolve pure oxygen into water. It is widely used in aquaculture to improve water quality and fish health.

How It Works:

  1. Water and oxygen inlet:

    • Deoxygenated water enters from the top of the cone.

    • At the same time, pure oxygen gas is injected under pressure into the cone.

  2. Mixing and dissolution:

    • The water flow slows down inside the cone due to its widening shape.

    • This increases the contact time between oxygen bubbles and water.

    • The pressure and conical design ensure near-complete oxygen dissolution.

  3. Outlet:

    • Oxygen-rich water exits from the bottom of the cone and is distributed to tanks or recirculating systems.

Technical Features:

  • Materials: stainless steel, PVC, HDPE, or fiberglass.

  • Operating pressure: 1 to 4 bar depending on the model.

  • Saturation rate: up to 95–100%, or higher under optimal conditions.

  • Typical flow rate: varies based on cone size (from a few m³/h to several dozen).

Advantages:

  • Very high oxygenation efficiency (better than traditional air diffusers).

  • Reduced oxygen loss.

  • Compact and energy-efficient.

  • Easy to integrate into recirculating aquaculture systems (RAS).

Applications:

  • Intensive fish farming (trout, salmon, tilapia, etc.).

  • RAS systems.

  • Quarantine or treatment tanks.

  • Emergency oxygenation (e.g., heatwaves or fish stress).

€0.00
Tax included
Modèle
Options
Quantity

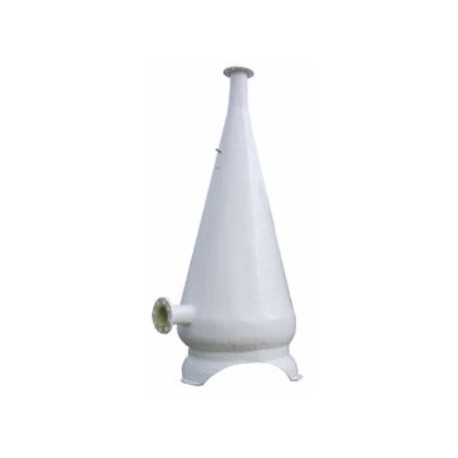

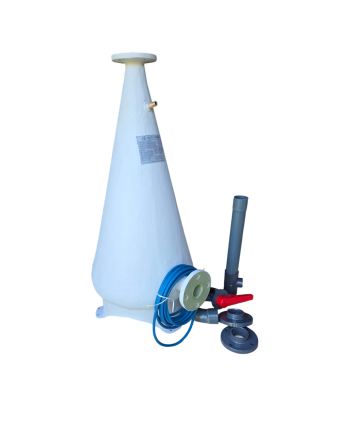

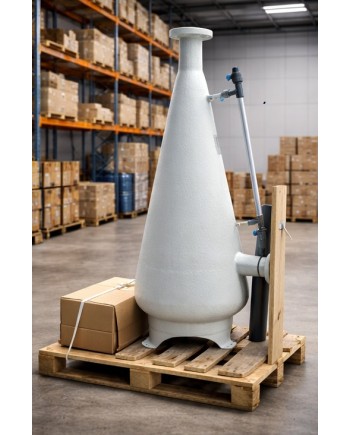

Oxygenation cones made of GRP (Glass Reinforced Plastic) are used either in the main water flow or in a bypass for oxygen enrichment. Water flows from top to bottom. As the cone widens, the flow velocity decreases, creating a balance between the upward movement of oxygen bubbles and the downward flow of water. The bubbles remain suspended until they are fully dissolved. The pressure inside the cone is regulated using a valve at the outlet (included in the accessory set).

Models

1

2 3 4 5 6
Cône

C-0

C-1 C-2 C-3 C-4 C-5
Reference E1235100 E1235200 E1235300 E1235400 E1235500 E1235600
Flowrate max.
15 m³/h 30 m³/h  60 m³/h  90 m³/h 115 m³/h 140 m³/h
Operating Pressure   2.0 bar 1.5 bar 1.5 bar 2.0 bar 1.5 bar 2.0 bar
Maximum pressure 4 bar 4 bar 4 bar 4 bar 4 bar 4 bar
Volume
0.11 m³ 0.169 m³ 0.395 m³ 0.482 m³ 0.788 m³ 1.239 m³
Fitting DN65 DN100 DN100 DN125 DN125 DN150
A-B-C 580-1320-310 600-1720-360 800-2190-420 900-2200-470 1000-2700-490 1200-3160-580
Weight (kg) 20 30 60 90 120 150
E1241000 Set d'accessoires pour C-0
E1241100 Set d'accessoires pour C-1
E1241200 Set d'accessoires pour C-2
E1241300 Set d'accessoires pour C-3
E1241400 Set d'accessoires pour C-4
E1241500 Set d'accessoires pour C-5

Others informations

C-0 C-1 C-2 C-3 C-4 C-5
Oxygène absorption kg/h @ 0.69 bar
5°C 0.36 0.77 1.59 2.36 2.99 3.62
10°C 0.32 0.68 1.45 2.00 2.54 3.08
15°C 0.32 0.59 1.18 1.77 2.27 2.77
20°C 0.27 0.50 1.04 1.59 2.04 2.45
25°C 0.27 0.50 1.04 1.59 2.04 2.45
C-0 C-1 C-2 C-3 C-4 C-5
Oxygène absorption kg/h @ 1.72 bar
5°C 0.84 1.65 3.31 4.96 6.33 7.72
10°C 0.71 1.43 2.94 4.40 5.60 6.82
15°C 0.65 1.29 2.61 3.92 4.99 6.07
20°C 0.58 1.20 2.36 3.53 4.50 5.50
25°C 0.52 1.07 2.11 3.18 4.06 4.94
