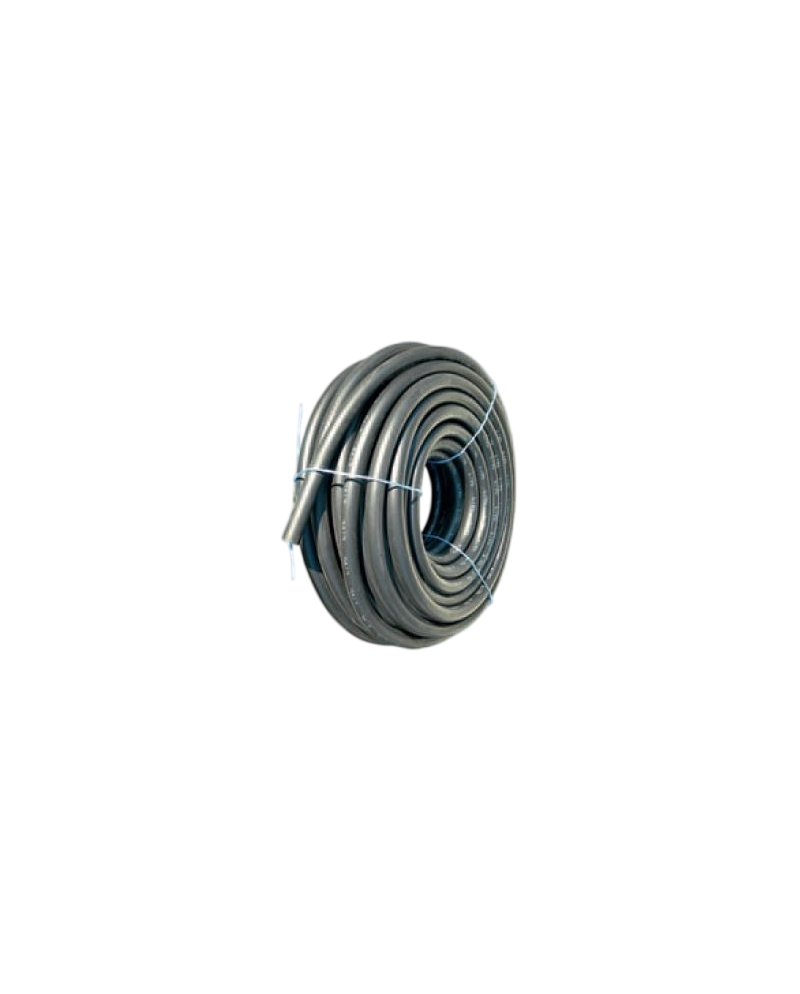

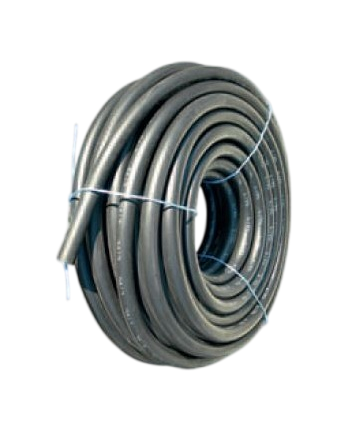

The AquaROB oxygen diffuser hose is specifically designed for the diffusion of pure oxygen in aquaculture facilities, hatcheries, recirculating aquaculture systems (RAS), live fish holding tanks, and transport tanks. Its micro-perforated rubber construction produces a cloud of fine bubbles, ensuring excellent oxygen transfer efficiency while minimizing gas losses.
When the diffuser is not in use, the thousands of micro-perforations close automatically, preventing clogging caused by suspended solids, biofilm, or other contaminants. This self-sealing design guarantees immediate operation, even after long periods without use.
Manufactured from high-quality rubber with excellent resistance to ageing, the AquaROB diffuser hose can be installed on diffuser frames or used independently for specific applications. It is compatible with AquaROB fittings and accessories and is suitable for both permanent installations and emergency oxygenation systems.
Important: This diffuser hose is designed exclusively for the distribution of pure oxygen, providing efficient oxygenation while reducing oxygen consumption through uniform fine-bubble diffusion.
For use in live fish transport tanks or as an emergency oxygen diffusion system in rearing tanks. Approximately 1,000 pores per meter automatically close when the diffuser is not in operation. The AquaROB diffuser is clog-resistant and always ready for use. The frame and clamps are made of stainless steel, while the diffuser hose is manufactured from a special rubber compound.
| Indicative flow rate (L/min) according to pressure | |||||||
| Bar | 0.3 | 0.4 | 0.5 | 0.6 | 0.7 | 0.8 | 1.0 |
| ØD/d 16/10 mm | 0.2 | 0.3 | 0.5 | 0.6 | 0.7 | 0.8 | 1.0 |
| ØD/d 29/19 mm | 0.6 | 0.8 | 1.0 | 1.2 | 1.4 | 1.6 | 2.0 |
| Models | Reference | Components | Infos | Weight (kg) |
| 1 | E0711000 | Diffuser hose | ØD/d 16/10 mm | 0.24/m |
| 2 | E0712000 | Diffuser hose | ØD/d 29/19 mm | 0.36/m |
| 3 | E0713000 | End cap | 10 mm | 0.1 |
| 4 | E0714000 | End cap | 19 mm | 0.03 |
| 5 | E0715000 | Connector | 10-6 mm |
0.01 |
| 6 | E0716000 | Connector | 19-6 mm | 0.03 |
| 7 | E0717000 | Stainless steel clamp | pour 16 mm | 0.01 |
| 8 | E0718000 | Stainless steel clamp | pour 26 mm | 0.01 |
| 9 | E0711900 | Stainless steel weight | Ø 6mm | 0.22/m |
| 10 | E0720000 | Stainless steel weight | Ø 8mm | 0.39/m |
