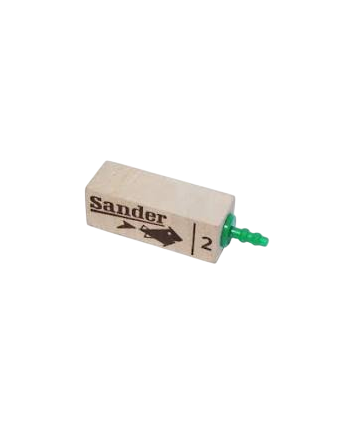

The wooden diffuser is a fine-bubble diffusion element designed for air or ozone injection in aquaculture and water treatment systems. Made from specially selected porous wood (such as lime wood or equivalent), it generates microbubbles that ensure highly efficient gas-to-water transfer.
It is particularly suitable for applications requiring strong mixing and high oxygen transfer efficiency, and can also be used for ozone injection in properly designed contact and treatment systems.
Applications
- Oxygenation in intensive aquaculture
- Air diffusion in ponds and RAS systems
- Ozone injection in contact reactors
- Public aquariums and technical installations
- Gas-liquid contact columns
Benefits
- Very fine microbubble production
- High mass transfer efficiency
- Fast and homogeneous gas dispersion
- Low energy consumption
- Easy maintenance and replacement
Features
- Calibrated porous wood material
- Compatible with air and ozone
- Low-pressure operation
- Uniform diffusion across active surface
- Available in multiple sizes and flow capacities
Wooden Diffuser for Air and Ozone
The wooden diffuser is a fine-bubble diffusion element designed for air or ozone injection in aquaculture and water treatment systems. Made from specially selected porous wood (such as lime wood or equivalent), it generates microbubbles that ensure highly efficient gas-to-water transfer.
It is particularly suitable for applications requiring strong mixing and high oxygen transfer efficiency, and can also be used for ozone injection in properly designed contact and treatment systems.
Applications
- Oxygenation in intensive aquaculture
- Air diffusion in ponds and RAS systems
- Ozone injection in contact reactors
- Public aquariums and technical installations
- Gas-liquid contact columns
Benefits
- Very fine microbubble production
- High mass transfer efficiency
- Fast and homogeneous gas dispersion
- Low energy consumption
- Easy maintenance and replacement
Features
- Calibrated porous wood material
- Compatible with air and ozone
- Low-pressure operation
- Uniform diffusion across active surface
- Available in multiple sizes and flow capacities
€0.00
Tax included

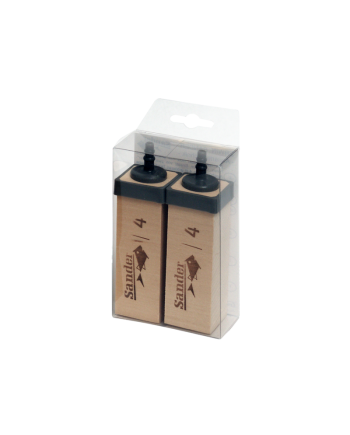

Specially designed diffusers for ozone dispersion in small systems, suitable for both freshwater and seawater applications, with an approximate pressure drop of 0.1 bar and a service life of 4–8 weeks.
| Nr.1 | Nr.2 | Nr.3 | Nr.4 | |
| Reference | E0700100 | E0700200 | E0700300 | E0700400 |
| Lenght - width - Height (mm) | 19-19-36 | 19-19-54 | 19-24-96 | 30-30-88 |
| Max. l/h |
250 | 500 | 800 | 1200 |
| Diamèter | 4 mm | 4 mm | 4 mm | 6 mm |
| Weight (g) | 6 | 8 | 20 | 30 |
