The MBD oxygen diffuser is a device designed to optimize the dissolution of oxygen in a fluid, particularly in water or air, depending on the application. Using microbubble technology, it ensures fine and uniform diffusion, thereby maximizing oxygen transfer efficiency.
Key Features:
-
MBD Technology (Micro Bubble Diffusion): generates microbubbles (<100 microns) for maximum absorption.
-
Durable Materials: body made of ceramic, stainless steel, or technical polymers, depending on the model.
-
Low Energy Consumption: requires minimal pressure to operate efficiently.
-
Low Maintenance: anti-clogging design for long service life.
-
Wide Range of Applications: aquaculture, water treatment, aquariums, industrial processes, medical applications
Benefits:
-
High oxygen transfer rate thanks to ultra-fine bubbles.
-
Even distribution throughout the fluid volume.
-
Improved biological or chemical performance of the treated system

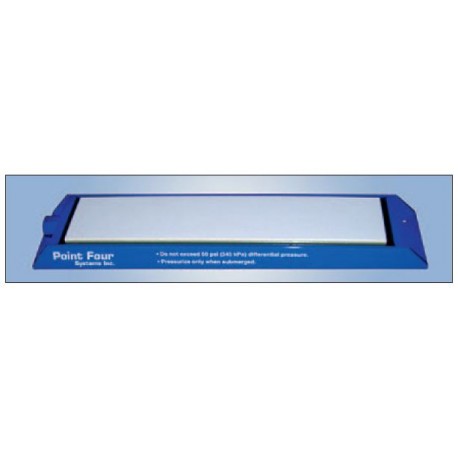

Ceramic diffusers for pure oxygen
The MBD oxygen diffuser is a device designed to optimize the dissolution of oxygen in a fluid, particularly in water or air, depending on the application. Using microbubble technology, it ensures fine and uniform diffusion, thereby maximizing oxygen transfer efficiency.
Key Features:
-
MBD Technology (Micro Bubble Diffusion): generates microbubbles (<100 microns) for maximum absorption.
-
Durable Materials: body made of ceramic, stainless steel, or technical polymers, depending on the model.
-
Low Energy Consumption: requires minimal pressure to operate efficiently.
-
Low Maintenance: anti-clogging design for long service life.
-
Wide Range of Applications: aquaculture, water treatment, aquariums, industrial processes, medical applications
Benefits:
-
High oxygen transfer rate thanks to ultra-fine bubbles.
-
Even distribution throughout the fluid volume.
-
Improved biological or chemical performance of the treated system
€0.00
Tax included
These diffusers create a cloud of very fine bubbles (100–500 µm) that cover the entire surface area and provide a very high transfer rate at appropriate depths — approximately 30% at 1 meter depth. Made from inert ceramic with ultra-fine porosity. Recommended for a minimum water depth of 80 cm.
| Models | 1 | 2 | 3 | 4 |
| MBD | MBD-75 |
MBD-100 | MBD-300 | MBD-600 |
| Référence |
E0631000 |
E0632000 | E0633000 | E0634000 |
| Lenght - Width ceramic part (mm) | 155-30 | 310-30 | 310-60 | 620-60 |
|
Lenght - Width - total height (mm) |
220-45-31 | 370-45-31 | 390-83-31 | 700-83-31 |
| Service presure (bar) |
1.7-2.4 | 1.7-2.4 | 1.7-2.4 | 1.7-2.4 |
| Maximum pressure (bar) |
3.5 | 3.5 | 3.5 | 3.5 |
| Capacity (*) | 0.75 l/min
~62.5 g O2/h |
1.5 l/min
~125 g O2/h |
3.0 l/min
~250 g O2/h |
6.0 l/min
~500 g O2/h |
| Fitting (mm) | 6 | 6 | ¼"IG | ¼"IG |
| Weight(kg) | 0.3 | 0.5 | 1.2 | 2.3 |
| (*) to service pressure | ||||
