The Pilz-T aerator from LINN is a floating surface aerator with a submersible motor, designed to provide efficient water mixing and oxygenation for ponds and basins, even in winter conditions.
Operating principle
-
The submersible motor is placed below the water surface, allowing continuous operation even at low temperatures or in partially frozen water.
-
It drives a vertical propeller that propels water upwards, creating a water jet and complete vertical mixing.
-
This promotes dissolved oxygen supply, degassing of CO₂ and undesirable gases, and prevents thermal stratification in the water column.

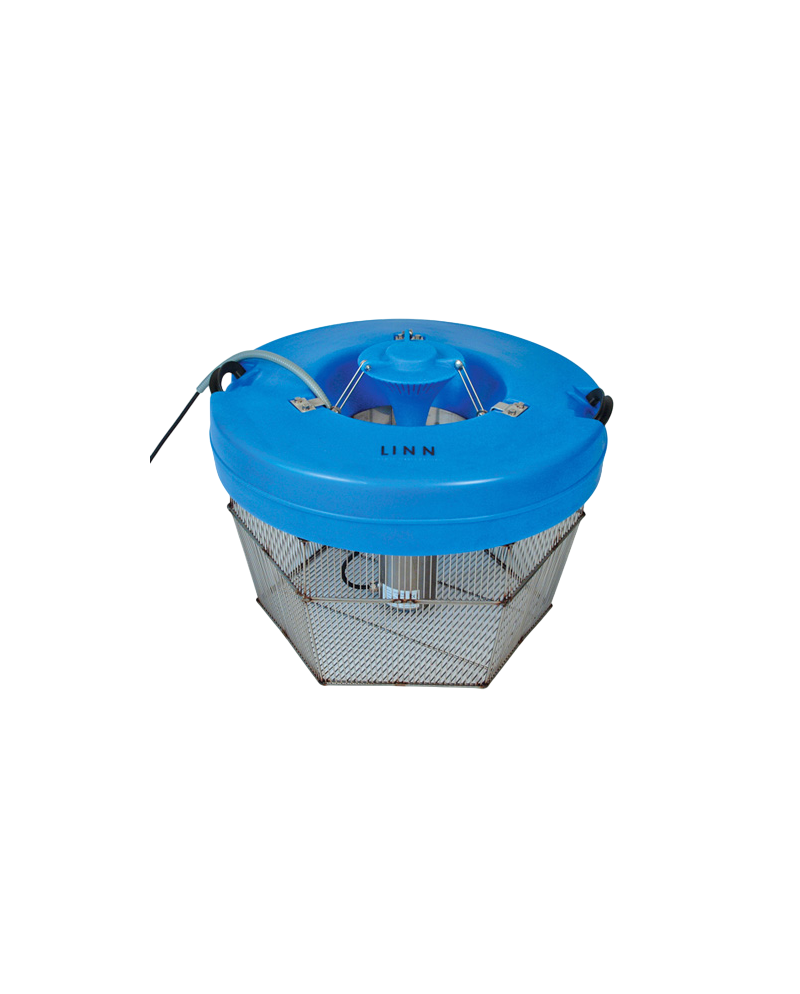

PILZ-T Surface Aerator with submersible motor
The Pilz-T aerator from LINN is a floating surface aerator with a submersible motor, designed to provide efficient water mixing and oxygenation for ponds and basins, even in winter conditions.
Operating principle
-
The submersible motor is placed below the water surface, allowing continuous operation even at low temperatures or in partially frozen water.
-
It drives a vertical propeller that propels water upwards, creating a water jet and complete vertical mixing.
-
This promotes dissolved oxygen supply, degassing of CO₂ and undesirable gases, and prevents thermal stratification in the water column.
€0.00
Tax included
Delivered ready to use with float, stainless steel protection grid, cable, and thermal protection plug
Pilz: With surface-mounted motor
Pilz-T: With submersible motor, suitable for winter use
| Models | 1 | 2 | 3 | 4 | |
| PILZ-T |
PILZ-T I | PILZ-T II | PILZ-T III | PILZ-T IV | |
| submersible motor | |||||
| 230V/50Hz~1 | E0027000 | E0029000 | E0031000 | - | |
| 400V/50Hz~3 | E0028000 | E0030000 | E0032000 | E0034000 | |
| Power - P2 (nominal) | 0.40 kW | 0.55 kW | 0.75 kW | 1.10 kW | |
| Power - P1 | 0.59 kW | 0.84 kW | 1.10 kW | 1.40 kW | |
| m³/h (*) | 125 | 160 | 240 | 300 | |
| ø waterjet | Ø3200 mm | Ø3900 mm | Ø4500 mm | Ø5000 mm | |
| Waterjet height | 550 mm | 600 mm | 600 mm | 700 mm | |
| For tanks | 200 m² | 300 m² | 400 m² | 500 m² | |
| Size (mm) | Ø800- Hauteur 650 | Ø800 -H 650 | Ø800 -H 650 | Ø800 -H 650 | |
| Weight (kg) | 30 | 30 | 30 | 30 | |
| Câble | 20 m | 20 m | 20 m | 20 m | |
| Grille | Acier inox. 5.5 - 9.5 - 18.0 mm (standard 9.5mm) | ||||
| (*) Valeurs données à titre indicatif sans engagement | |||||
Main features
-
Protected submersible motor: built to withstand prolonged immersion and winter conditions.
-
Floating and mobile: easy to install and relocate within the pond.
-
High flow and mixing capacity: suitable for medium and large water bodies.
-
Delivered ready to use: includes float, stainless steel protection grid, cable, and thermal protection plug.
Advantages
-
Reliable operation even in winter thanks to the submersible motor.
-
Rapid oxygenation and effective mixing, reducing the risk of fish mortality.
-
Simplified maintenance, as the submersible motor is protected against shocks and corrosion.
-
Suitable for fish ponds, ornamental basins, or natural water bodies.
