Technical description of the "ceramic diffuser"
-
It is a fine bubble diffuser designed for aeration in industrial facilities (drinking water, wastewater treatment, etc.).
-
Made from sintered ceramic material, this diffuser offers high mechanical strength and excellent chemical resistance, even in the presence of aggressive solvents.
-
The ceramic material also ensures good regeneration capacity: it can be cleaned with formic acid during use, by washing, by compressed air back-flushing after disassembly, or by calcination to remove heavy organic impurities.
-
Ceramic tube diffusers are usually mounted on a distribution pipeline (often at the bottom of an aeration basin), with centering rings and end fittings, held by a connecting rod. Available lengths typically range from 500 mm to 1000 mm depending on requirements.
-
Mantec also offers variants compatible with ozonation or adapted to aquaculture, in addition to conventional EPDM membrane diffusers.

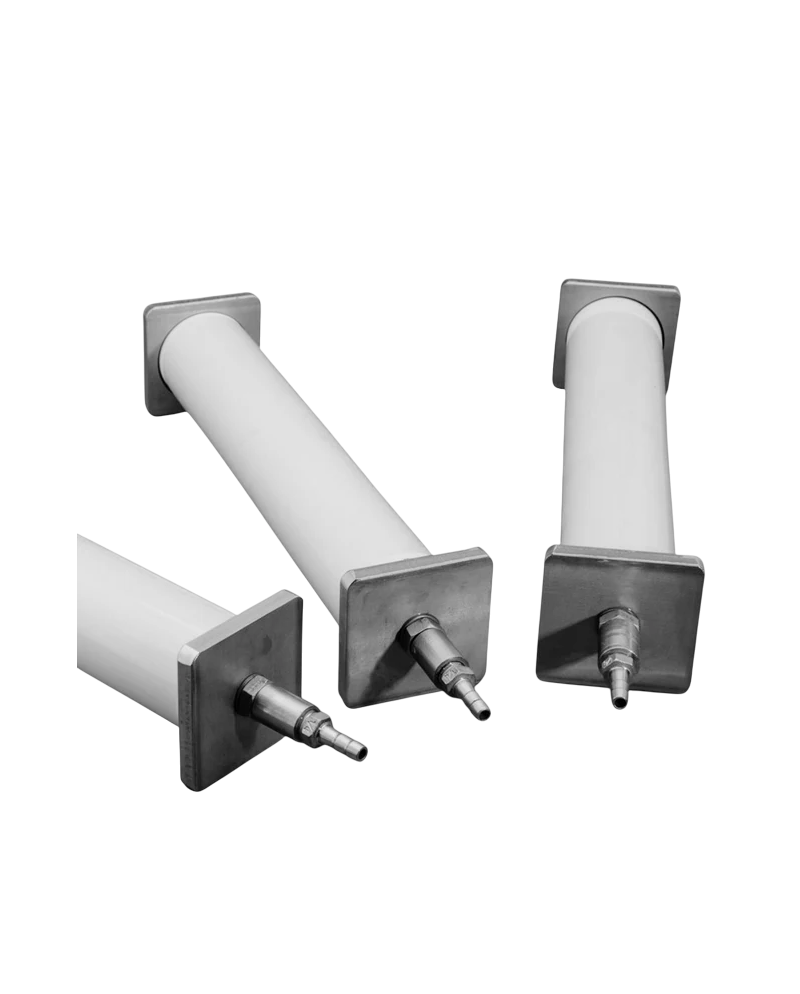

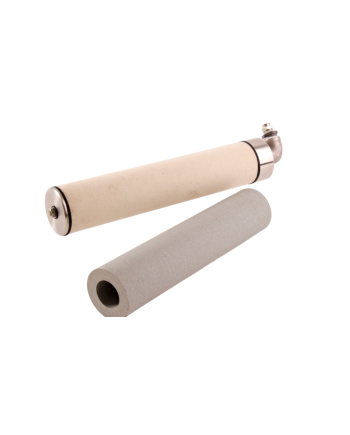

Ceramic diffusers OXY for oxygen
Technical description of the "ceramic diffuser"
-
It is a fine bubble diffuser designed for aeration in industrial facilities (drinking water, wastewater treatment, etc.).
-
Made from sintered ceramic material, this diffuser offers high mechanical strength and excellent chemical resistance, even in the presence of aggressive solvents.
-
The ceramic material also ensures good regeneration capacity: it can be cleaned with formic acid during use, by washing, by compressed air back-flushing after disassembly, or by calcination to remove heavy organic impurities.
-
Ceramic tube diffusers are usually mounted on a distribution pipeline (often at the bottom of an aeration basin), with centering rings and end fittings, held by a connecting rod. Available lengths typically range from 500 mm to 1000 mm depending on requirements.
-
Mantec also offers variants compatible with ozonation or adapted to aquaculture, in addition to conventional EPDM membrane diffusers.
€0.00
Tax included
| Models | 1 | 2 | 3 | 4 |
| OXY | OXY-300 | OXY-500 | OXY-750 | OXY-1000 |
| Reference |
Oxy300 |
Oxy500 | Oxy750 | Oxy1000 |
| Lenght - diameter céramic (mm) | 330-50 | 500-50 | 750-50 | 1000-50 |
|
Lenght- Width - Height total (mm) |
410-75-75 | 580-75-75 | 830-75-75 | 1000-75-75 |
| Operating pressure (bar) |
1-4 | 1-4 | 1-4 | 1-4 |
| Maximum pressure (bar) |
6 | 6 | 6 | 6 |
| Capacity (*) | 2 l/min | 4.5 l/min | 8.0 l/min | 12.0 l/min |
| Fitting (mm) | 1/4'' BSP | 1/4'' BSP | 1/4'' BSP | 1/4'' BSP |
| Weight (kg) | 0.3 | 0.5 | 1.2 | 2.3 |
| (*) at operating pressure | ||||
