The circular steel tank with liner is a modular structure designed for the farming of fish and other aquatic species in controlled environments. It is used in freshwater aquaculture facilities.
Metallic circular tanks [freshwater]
The circular steel tank with liner is a modular structure designed for the farming of fish and other aquatic species in controlled environments. It is used in freshwater aquaculture facilities.
€0.00
Tax included

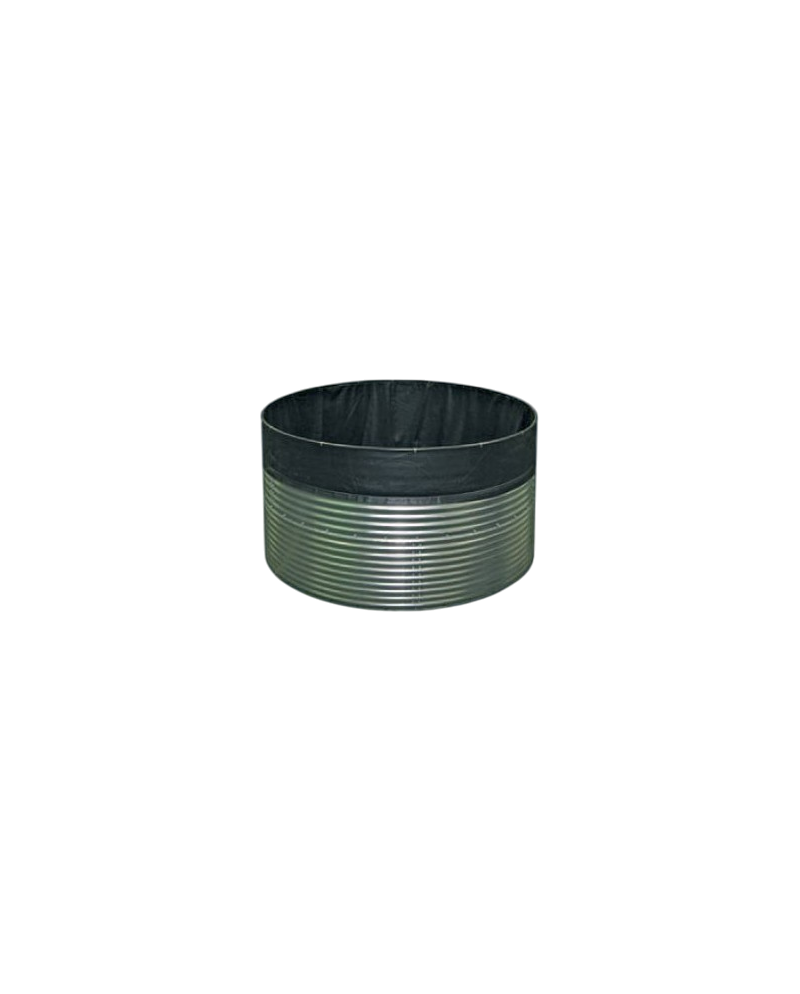

Sturdy circular tanks made of galvanized steel sheet with EPDM liner (standard 1.0 mm) or butyl, freshwater version, designed for installation on a concrete platform or half-buried in the ground. Optional accessories include wall penetrations, drains, and covers.
Metal variants:
-
Galvanized steel (freshwater)
-
Double-sided electrostatic coating (seawater)
-
EPDM or butyl (food-grade quality)
| Models | Reference | Article | Vol.
~m³ |
ø A (mm) |
Height B | Weight (kg) |
| 1 | B0442100 | 12/1 | 8.0 | 3690 | 810 | ~110 |
| 2 | B0442200 | 15/1 | 12.5 | 4600 | 810 | ~140 |
| 3 | B0442300 | 18/1 | 18.0 | 5530 | 810 | ~175 |
| 4 | B0442400 | 21/1 | 25.0 | 6450 | 810 | ~210 |
| 5 | B0442500 | 24/1 | 32.0 | 7380 | 810 | ~250 |
| 6 | B0442600 | 30/1 | 50.0 | 9220 | 810 | ~340 |
| 7 | B0442700 | 36/1 | 75.0 | 11110 | 810 | ~430 |
| 8 | B0443100 | 12/2 | 16.0 | 3690 | 1520 | ~210 |
| 9 | B0443200 | 15/2 | 25.0 | 4600 | 1520 | ~270 |
| 10 | B0443300 | 18/2 | 36.0 | 5530 | 1520 | ~330 |
| 11 | B0443400 | 21/2 | 50.0 | 6450 | 1520 | ~390 |
| 12 | B0443500 | 24/2 | 65.0 | 7380 | 1520 | ~450 |
| 13 | B0443600 | 30/2 | 100.0 | 9220 | 1520 | ~640 |
| 14 | B0443700 | 36/2 | 148.0 | 11110 | 1520 | ~790 |
Technical Features:
-
Shape: Circular
-
Structure:
-
Rigid walls made of galvanized or stainless steel (corrosion-resistant)
-
Standard height: 1 to 1.5 m (customizable)
-
Diameter: ranges from 2 to 20 meters or more, depending on required capacity
-
-
Inner Liner:
-
Made of PVC, EPDM, or HDPE (high-density polyethylene)
-
UV, chemical, and abrasion resistant
-
Securely fixed to steel frame
-
Replaceable for deep cleaning or wear
-
-
Capacity:
-
From a few m³ to several hundred m³
-
Example: a tank with 10 m diameter and 1.2 m height holds approx. 94 m³
-
-
Inlet/Outlet System:
-
Central drainage for efficient waste removal
-
PVC or PE piping for water supply, aeration, and filtration
-
-
Optional Accessories:
-
Predator protection nets
-
Overflow grates
-
Aeration or oxygenation systems
-
Temperature, pH, and oxygen sensors
-
Advantages:
-
Quick and easy to assemble (bolted or clipped structure)
-
Long lifespan thanks to durable materials
-
Excellent water circulation due to circular shape
-
Easy maintenance with removable liner
-
Suitable for intensive or semi-intensive fish farming
