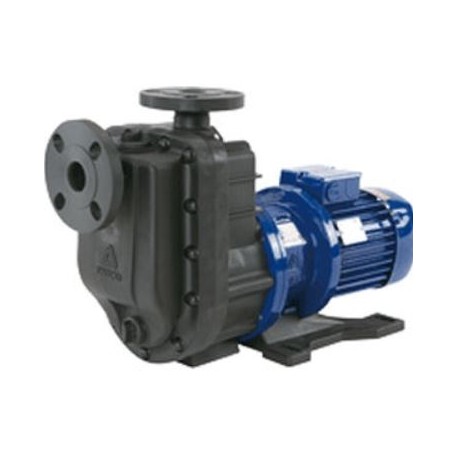

Iwaki SMX-F Series Pump

The Iwaki SMX-F series pump is a magnetic drive centrifugal pump designed for transferring chemical liquids, including corrosive products, acids, and other demanding fluids. With its contactless construction, the pump prevents leaks and reduces maintenance needs, ensuring reliable and durable operation in harsh industrial environments.

This series is ideal for applications where resistance to corrosion, reliability, and safety are essential, such as in the chemical, pharmaceutical, food, and other demanding industries.

Key Features:

• Pump type: Magnetic drive centrifugal pump

• Common applications:

  • Chemical transfer and corrosive liquid circulation

  • Acid circulation in treatment systems

  • Filtration and purification of industrial fluids

  • Surface treatment in chemical environments

  • Pumping of sensitive liquids in high-risk environments

• Wetted materials:

  • Fluoroplastics such as PVDF or ETFE for enhanced chemical resistance

  • Ceramic or carbon bearings

  • Stainless steel for non-fluid-exposed parts

• Operating temperature: -20 °C to 90 °C (depending on model and materials)

• Maximum flow rate: Up to 200 L/min (model dependent)

• Maximum head: Up to 20 meters

• Drive: Electric motor with magnetic drive to prevent fluid leakage

• Electrical power: 0.25 kW to 1.5 kW (depending on model)

• Standards: Compliant with ATEX requirements for explosive environments

Advantages:

• Leak-free operation due to the mechanical seal-less design

• High resistance to corrosion and abrasion

• Low maintenance due to the simplicity of the design and mag-drive technology

• Quiet operation with low energy consumption

• Improved reliability in harsh environments with compliance to ATEX safety standards for hazardous environments

• Versatility for a wide range of industrial applications, even in extreme conditions

Specific Applications:

• Chemical transfer in the chemical and pharmaceutical industries

• Corrosive liquid circulation in surface treatment or filtration systems

• Pumping in explosive or sensitive environments

• Pumping of aggressive liquids for the food or electronics industries
