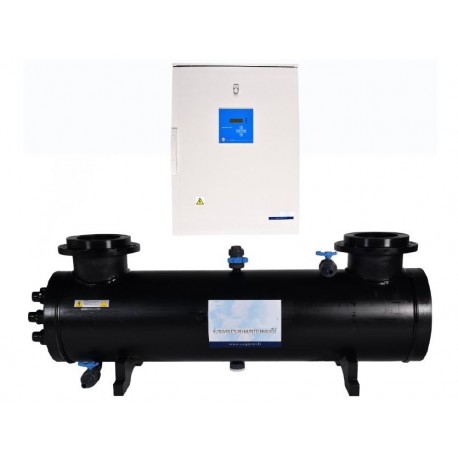

UV sterilizer 2400 HDPE

AQUACULTURE FRANCE offers a complete range of UV sterilizers specifically designed and adapted for aquaculture, fish farming, shellfish farming, aquariums, and ponds.

Our sterilizers contain no metal parts, making them perfectly suited for the treatment of corrosive waters such as seawater.

UV-C germicidal lamp sterilization destroys algae, fungi, and bacteria suspended in the water. UV sterilizers can be installed inline in a closed circuit, at the site inlet to secure the renewal water, or at the outlet to ensure that effluents comply with regulatory requirements.

UV sterilization is mandatory in shellfish purification units if the shellfish are harvested from Class B production areas (Directive of July 15, 1991 – 91/492/EEC).

All options are available:

• Manual or automatic UV lamp cleaning

• UV cell for continuous measurement of radiation effectiveness

• Adjustable lamp power

• Device startup controlled by the presence of water

These units can operate in closed reactors within a specific HDPE chamber or in open channels.

Recommended flow rate: 292 to 468 m³/h
Equipment capable of treating an average water flow of 292 m³/h (at 40 mJ/cm²) to 468 m³/h (at 25 mJ/cm²)

Lamp:
Total electrical power: 2400 Watts (8 lamps)

UV Reactor:
Treatment chamber: HDPE
Inlet/outlet: DN200 / PVC Ø200
Maximum allowed pressure: 6 bar

Electrical cabinet:
Power supply: 230 V / 50-60 Hz
Start-up switch – Photo sensor
Lamp operating indicator
Buzzer in case of lamp failure
Hour counter

This UV lamp has a limited lifespan of 16,000 hours. After this time, water disinfection is no longer guaranteed.
