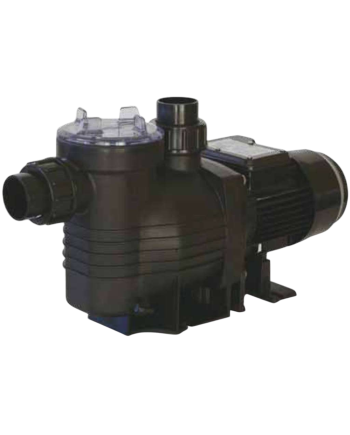

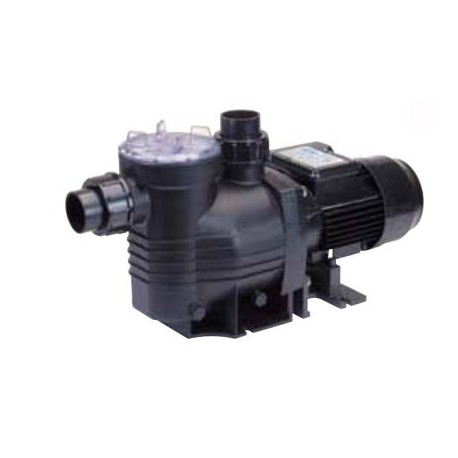

Aquamite pump

The Aquamite pump is a robust unit that stands out for its compact size, quick-connect fittings, mechanical reliability thanks to its double seal system, and durable one-piece construction.

Technical Specifications

• Available power ratings: 0.33 HP (0.25 kW), 0.5 HP (0.58 kW), 0.75 HP (0.65 kW), 1 HP (0.76 kW), and 1.25 HP (0.88 kW)

• Flow rate and pressure (examples at 220–240 V, 50 Hz, 2,860 RPM):

  • 0.5 HP: ~112 L/min (≈6,700 L/h)

  • 0.75 HP: ~156 L/min

  • 1 HP: ~197 L/min

  • 1.25 HP: ~252 L/min

• Connections: 40 mm or 1½″ standard quick unions

• Prefilter basket: 0.9 litre capacity, with a transparent lid for easy inspection

• Dimensions: overall length approx. 497 mm for models up to 0.75 HP

Design Highlights

• Optimized impeller and diffuser: maximize hydraulic flow while minimizing turbulence

• One-piece reinforced plastic housing: prefilter pot and volute molded as a single unit for increased strength

• Double sealing system: patented secondary seal captures any potential leakage from the mechanical seal before it reaches the motor

• Durable materials: high-quality carbon/graphite mechanical seal; housing resistant to chemicals and saltwater

• Stable base and transparent lid for quick visual inspection
