CO2 Meter for Aquaculture – Carbon Dioxide Concentration Measurement
The CO2 meter for aquaculture is a precision device used to measure the carbon dioxide (CO2) concentration in water systems. Monitoring CO2 levels is crucial in aquaculture environments, as excessive or insufficient levels can affect fish health and water quality. This meter allows real-time monitoring of CO2 levels and adjustments to maintain optimal conditions.
Key Features:
Real-time CO2 concentration measurement in water.
Clear and easy-to-read digital display.
Ideal for aquaculture, aquariums, and aquatic cultivation systems.
Alerts for CO2 levels outside predefined limits.
Robust and waterproof design for outdoor use.
Benefits:
Maintains optimal conditions for fish and aquatic plants.
Allows precise management of the aquatic environment.
Prevents risks associated with high or low CO2 levels.
Applications:
Aquaculture
Water retention ponds
Commercial and industrial aquariums
Aquatic cultivation systems
The toxicity of CO2 for fish is a crucial factor in the management of aquatic systems, especially in aquaculture. Carbon dioxide (CO2) is a gas naturally present in water and is used by aquatic plants for photosynthesis. However, excessively high CO2 concentrations in water can have harmful effects on fish. This is often the case with the use of well water or in closed-loop systems.

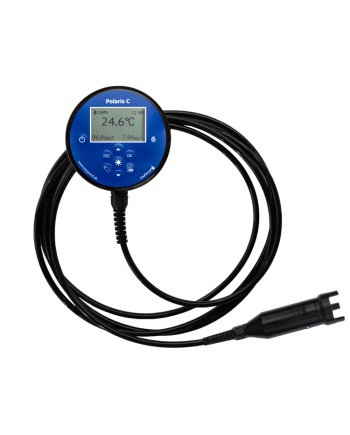

Oxyguard CO2 is an instrument specially designed for fish farming. It directly measures the gas pressure of CO2 dissolved in water. Available as a portable instrument with or without a recorder and as a stationary single-channel system for continuous measurement with a 4-20mA output.
Models | 1 | 2 | 3 |
Name | CO2 -stationary | CO2 - Handy (*) | CO2 - Handy-logg (*) |
Reference | P0072100 | P0074100 | P0076100 |
Device | stationnaire | portable | portable |
CO2 | 0-50 mg/l | 0-50 mg/l | 0-50 mg/l |
Resolution | +/- 1 mg/l | +/- 1 mg/l | +/- 1 mg/l |
Response time | ~5 min | ~5 min | ~5 min |
Recorder | - | - | + |
Câble lenght | 7 m | 3 m | 3 m |
Power | 230V/50Hz~1 | ~50 h | ~50 h |
Size (mm) | 120-120-58 | 120-120-58 | 120-120-58 |
Weight(kg) | 6 | 6 | 6 |
Others | |||
4 | P0077110 | Calibration set | |
5 | P0077120 | Calibration solution 100 ml | |
6 | P0077130 | pH conditioneur 75 g | |
7 | P0077140 | Pack batteries 230 VDC | |
8 | P0077150 | Charger 230 V | |
9 | P0077160 | Carrying case, orange | |
(*) Included calibration accessory P0077110 |
