The horizontal sand filter is a compact and efficient space-saving solution. Its spherical ends ensure uniform water flow, and it features a 500 mm filter bed. Built with a side-loop configuration and no metal components, it's ideal for corrosive environments such as seawater.
Constructed from wound fiberglass, these filters are specially designed for aquaculture, fish farming, shellfish farming, aquariums, and ponds.

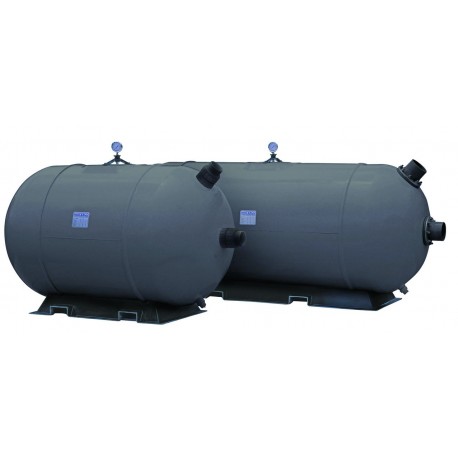

MICRON Horizontal sand filter
The horizontal sand filter is a compact and efficient space-saving solution. Its spherical ends ensure uniform water flow, and it features a 500 mm filter bed. Built with a side-loop configuration and no metal components, it's ideal for corrosive environments such as seawater.
Constructed from wound fiberglass, these filters are specially designed for aquaculture, fish farming, shellfish farming, aquariums, and ponds.
€0.00
Tax included
The Micron sand filter from Waterco is a high-performance filtration system designed for water treatment in swimming pools, aquatic installations, and industrial applications. Made from reinforced fiberglass materials, it offers exceptional corrosion resistance and long-term durability, even in harsh environments.
Key Features:
-
Seamless one-piece tank: Hand-laminated fiberglass construction for maximum strength.
-
High dirt-holding capacity: Uses filter sand or other media to trap fine particles.
-
Multiport valve (typically 6 positions): Facilitates filtration, backwash, rinse, waste, recirculation, and closed operations.
-
High operating pressure: Ideal for demanding systems.
-
Minimal maintenance: Easy and quick backwashing process.
Typical Applications:
-
Residential and commercial swimming pools
-
Aquaculture systems and ponds
-
Industrial or commercial water treatment plants
Benefits:
-
Long service life
-
Chemical-resistant
-
Low energy consumption (low pressure loss)
-
Easy installation and maintenance
| Models | Name | Lenght (mm) | Height (mm) | Diameter (mm) | Flange size (mm / "") | Media deptht (mm) | Filter area (m²) | Sand weight 16/30 (kg) |
Max flow rate 30m3/h/m² |
Fax flow rate 40m3 /h/m² |
|
| 1 | M2500 | 2300 | 1480 | 1310 | 110/4 | 500 | 2.50 | 2120 | 75 | 100 | |
| 2 | M3750 | 3350 | 1485 | 1310 | 110/4 | 500 | 3.75 | 3460 | 113 | 150 | |
| 3 | M3750 | 3350 | 1485 | 1310 | 160/6 | 500 | 3.75 | 3460 | 113 | 150 | |
| 4 | M5000 | 4340 | 1486 | 1310 | 160/6 | 500 | 5.00 | 4660 | 150 | 200 |
This Horizontal Filter is a high-performance space saver; its compact horizontal design allows for installation in minimal space.
The shape of the Horizontal Filter is both attractive and functional. The spherical ends are designed to ensure uniform flow from the inlet and outlet collector assemblies. Horizontal filters are available with a 500 mm filter bed.
Side loop configuration system available across the entire range of horizontal fiberglass filters. Traditional horizontal filtration systems consist of straight pipes with laterals running along the length of the horizontal filter.
All of these filters are wound (fiberglass) sand filters.
AQUACULTURE FRANCE offers a complete range of sand filters specially designed and adapted for aquaculture, fish farming, shellfish farming, aquariums, and ponds.
Our sand filters contain no metal parts, making them perfectly suitable for treating corrosive waters such as seawater.
