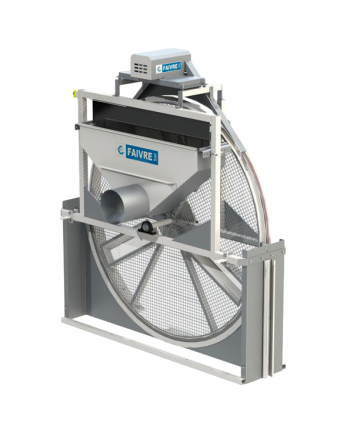

Leaf Filter
The Leaf filter is an automatic screening system designed to efficiently remove floating debris such as leaves and organic residues in water intake channels. It is particularly suitable for aquaculture facilities, wastewater treatment plants, and industries handling surface water.
Operating principle
The Leaf filter uses a stainless steel rotary disc (AISI 304L or 316L for marine environments) equipped with a screening grid. Water enters the disc, which rotates at 4 revolutions per minute, capturing solid particles. When the pressure difference reaches a preset threshold, an optimized rinsing system cleans the disc, discharging the collected debris into a waste disposal system.
Leaf filter
Leaf Filter
The Leaf filter is an automatic screening system designed to efficiently remove floating debris such as leaves and organic residues in water intake channels. It is particularly suitable for aquaculture facilities, wastewater treatment plants, and industries handling surface water.
Operating principle
The Leaf filter uses a stainless steel rotary disc (AISI 304L or 316L for marine environments) equipped with a screening grid. Water enters the disc, which rotates at 4 revolutions per minute, capturing solid particles. When the pressure difference reaches a preset threshold, an optimized rinsing system cleans the disc, discharging the collected debris into a waste disposal system.
€0.00
Tax included
For the filtration of floating debris and leaves in water intake channels. Robust construction in stainless steel AISI 304 for freshwater and AISI 316 for seawater, with belt-driven rotary screens. Preferably installed in concrete channels with a minimum width of 1 m and a maximum water height of 1.15 m; disc rotation speed 4 rpm, supplied with control unit and backwash pump with a flow rate of 30 m³/h. Power 0.55 kW / 400 V / 50 Hz ~1.
| Models | Reference | Name | l/sec | Mesh size | External diameter | Lenght - Height - Width (mm) | Weight (kg) |
| 1 | G0101100 | ROTODISC 10 | 500 | 10mm | Ø315mm | 2275-2770-480 | 400 |
| 2 | G0101200 | ROTODISC 20 | 500 | 20mm | Ø315mm | 2275-2770-480 | 400 |
Technical features
-
Maximum flow rate: up to 500 L/s (1,800 m³/h)
-
Disc diameter: 2,200 mm
-
Available mesh sizes: 10 mm or 20 mm
-
Rotation speed: 4 rpm
-
Construction: fully stainless steel AISI 304L or 316L
-
Motor: 0.55 kW, 380 V, three-phase
-
Installation: suitable for channels with a minimum width of 1 meter
-
Included accessories: control cabinet, submersible rinse pump, sludge discharge system
Advantages
-
Flexible installation: can be installed in channels less than 1 meter wide
-
Reduced maintenance: thanks to its optimized rinsing system and robust construction
-
Adaptability: suitable for both fresh and saline water
-
Water savings: rinsing system designed to minimize water consumption
-
Durability: corrosion-resistant materials ensure long service life
Limitations
-
Minimum channel width: requires at least 1 meter for installation
-
Periodic maintenance: although maintenance is low, regular checks are recommended to ensure optimal operation
The Leaf filter is a reliable and efficient solution for automatic screening, offering reduced maintenance and flexible installation tailored to user needs.
