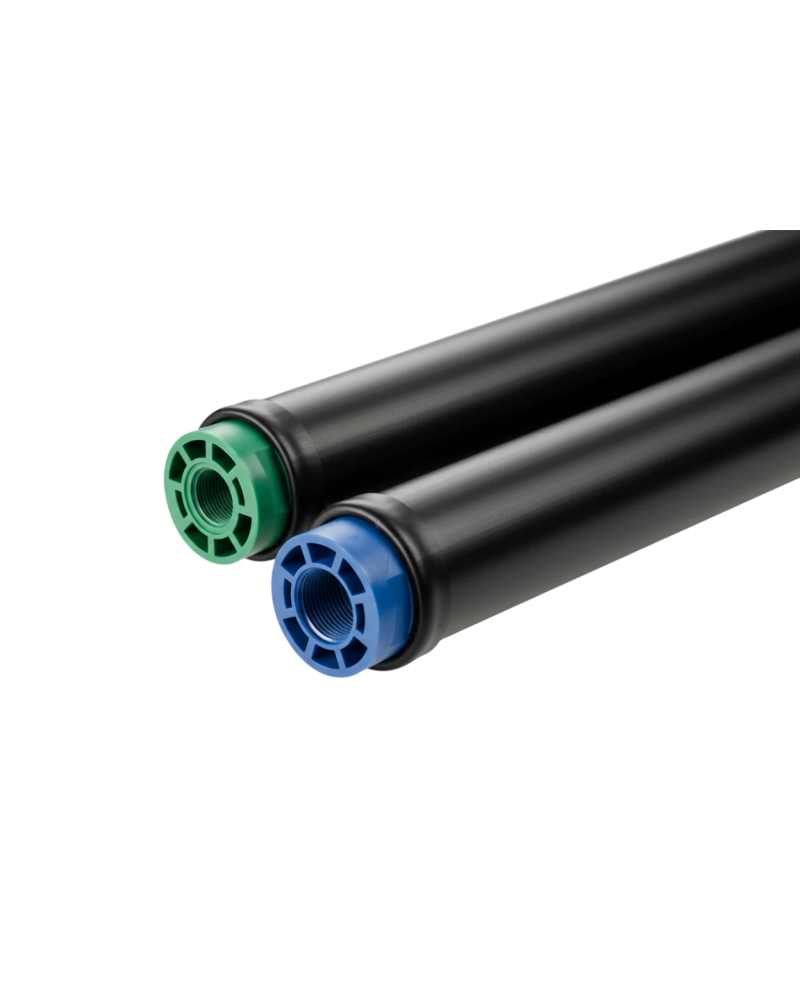

JÄGER EPDM Diffusion Tubes
JÄGER EPDM diffusion tubes are designed to provide fine and uniform air or oxygen distribution in aquaculture, water treatment and industrial basin applications. Made from high-quality EPDM material, they offer excellent resistance to wear, UV exposure, ozone and commonly used chemicals.
Thanks to their microporous structure, JÄGER tubes generate consistent microbubbles, maximizing oxygen transfer efficiency and improving overall aeration performance. Their flexibility allows easy installation on different support systems such as frames, rails or pond bottoms.
These tubes are particularly suitable for RAS systems, intensive fish farming, wastewater treatment plants and industrial applications requiring reliable and long-lasting aeration performance.
Key Features
- Uniform microbubble diffusion.
- High oxygen transfer efficiency.
- Durable EPDM material.
- Resistant to UV, ozone and chemicals.
- Flexible and easy installation.
- Low maintenance.
- Long service life under continuous operation.
Applications
- Intensive aquaculture.
- Recirculating Aquaculture Systems (RAS).
- Fish farming.
- Wastewater treatment plants.
- Industrial basins.
- Lagoon and pond oxygenation.
JÄGER EPDM Diffusion Tubes
JÄGER EPDM Diffusion Tubes
JÄGER EPDM diffusion tubes are designed to provide fine and uniform air or oxygen distribution in aquaculture, water treatment and industrial basin applications. Made from high-quality EPDM material, they offer excellent resistance to wear, UV exposure, ozone and commonly used chemicals.
Thanks to their microporous structure, JÄGER tubes generate consistent microbubbles, maximizing oxygen transfer efficiency and improving overall aeration performance. Their flexibility allows easy installation on different support systems such as frames, rails or pond bottoms.
These tubes are particularly suitable for RAS systems, intensive fish farming, wastewater treatment plants and industrial applications requiring reliable and long-lasting aeration performance.
Key Features
- Uniform microbubble diffusion.
- High oxygen transfer efficiency.
- Durable EPDM material.
- Resistant to UV, ozone and chemicals.
- Flexible and easy installation.
- Low maintenance.
- Long service life under continuous operation.
Applications
- Intensive aquaculture.
- Recirculating Aquaculture Systems (RAS).
- Fish farming.
- Wastewater treatment plants.
- Industrial basins.
- Lagoon and pond oxygenation.
€0.00
Tax included
Air diffuser. When the compressor is not operating, the slits in the elastic EPDM membrane automatically close, preventing any clogging. This diffuser is always ready for use and operates even in the most demanding conditions, such as effluent treatment or biological filtration. Ballasting available on request. Membrane service life: approximately 5 years.
| Models |
1 |
2 | 3 | 4 | |
| Pre-PUR® |
GJ-1 |
GJ-2 | GJ-3 | GJ-4-DISC | |
| EPDM-GJ |
E0561000 |
E0562000 | E0563000 | E0564000 | |
| Ø - height (mm) | Ø69-560 | Ø69-810 | Ø69-1060 |
Ø268-600 |
|
| Capacity | 1-6m³/h | 2-9m³/h | 3-12m³/h | 1.5-7 | |
| Diameter | ¾" IG | ¾" IG | ¾" IG | ¾" AG | |
| Weight (kg) | 0.8 | 1.1 | 1.3 | 0.6 | |
|
Accessories |
Weight (kg) |
||||
| 5 | R0392050 | Barbed olive fitting ¾" -25/28 mm | 0.03 | ||
| 6 | E0564400 | Bouchon | 0.03 | ||
| 7 | E0565000 | EPDM pipe 1.000 mm | 0.41 | ||
| 8 | e0565500 | EPDM pipe 10.000 mm | 4.10 | ||
