Water Leak Detector
Overview

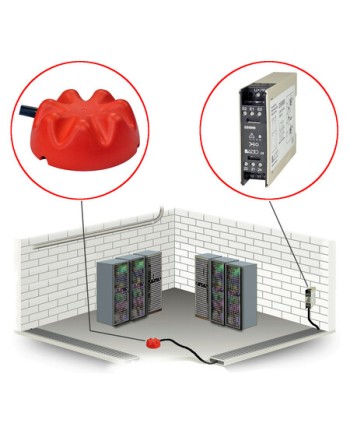

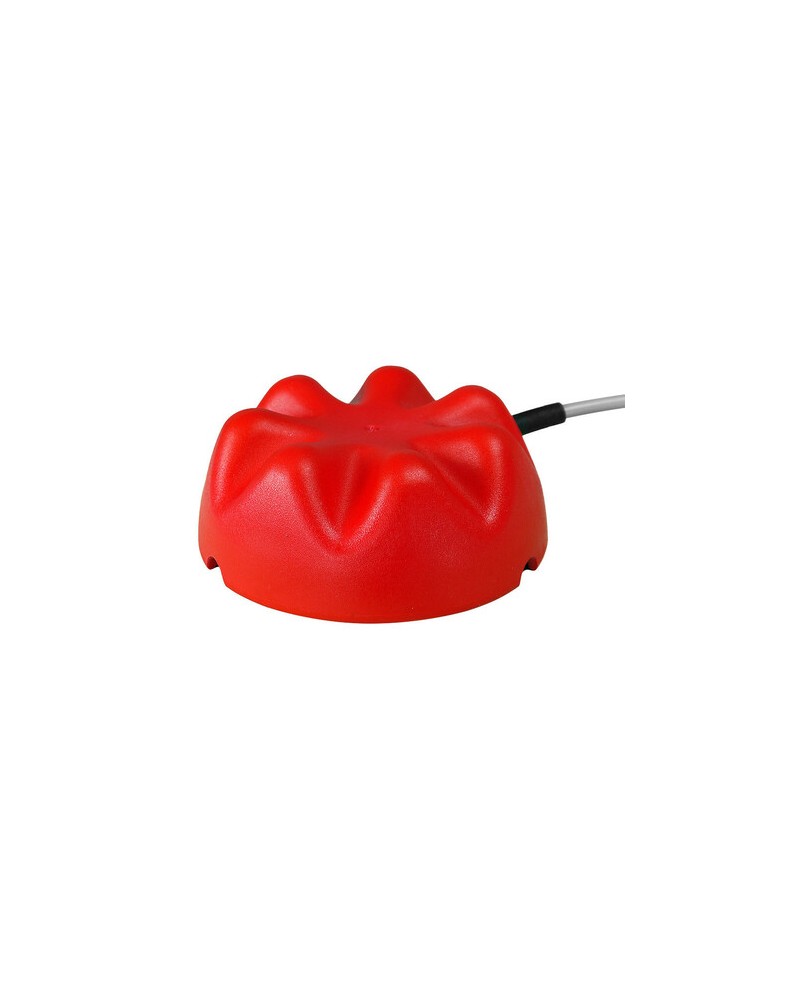

The leakage sensor is a floor-mounted water leak detector designed to monitor sensitive areas where the presence of water or any conductive liquid must be detected quickly. Typical applications include technical rooms, computer rooms, containment areas, cable trenches, and storage facilities.
Water leakage detector
Water Leak Detector
Overview
The leakage sensor is a floor-mounted water leak detector designed to monitor sensitive areas where the presence of water or any conductive liquid must be detected quickly. Typical applications include technical rooms, computer rooms, containment areas, cable trenches, and storage facilities.
€0.00
Tax included
- Your aquaculture partner
- Recirculating Aquaculture Systems (RAS)
- Tanks basins and cages for aquaculture
- Seafood holding systems
- Water filtration and treatment (RAS)
- Control, automation, and supervision
- Pumps and motor pumps
- Aquarium and equipment
- Aquaponics and spirulina
- Quarantine aquarium
- Display Aquarium
- Research Aquarium
Operating Principle
The detector uses two stainless-steel electrodes operating on a resistive detection principle. When a conductive liquid comes into contact with the electrodes, the electrical resistance changes. This variation is detected by a compatible monitoring relay (ES2001 or ES5000), which can trigger an alarm or a safety action.
The integrated 680 kΩ resistor allows continuous line monitoring when used with the ES5000 relay, enabling detection of:
- Water leakage
- Cable break
- Short circuit on the detection loop
Technical Specifications
- Detection principle: Conductive liquid leak detection
- Housing material: PBT
- Electrodes: Stainless steel 316L
- Cable: PVC, 2 x 0.34 mm²
- Standard cable length: 5 m
- Protection rating: IP67
- Minimum detection height: Approximately 1 mm
- Operating temperature: -20°C to +60°C
- Line monitoring: Yes (with ES5000 relay)
- CE compliant
Typical Applications
- Retention basins and containment tanks
- Technical trenches and channels
- Data centers and server rooms
- Electrical cabinets
- Pumping stations
- Water treatment facilities
- Aquaculture and recirculating aquaculture systems (RAS)
Key Benefits
- Detects water from approximately 1 mm depth
- No moving parts
- Low maintenance requirements
- Corrosion-resistant 316L stainless steel electrodes
- Continuous circuit monitoring capability
- Easy installation with pre-wired cable
Limitations
- Suitable only for conductive liquids
- Not suitable for hydrocarbons or non-conductive fluids
- IP67 rated but not intended for permanent immersion
Aquaculture Applications
The detector provides reliable protection against:
- Filter overflows
- Tank and basin leaks
- Pump room flooding
- Water losses in RAS facilities
When connected to an ES5000 relay and a PLC or remote alarm system, it provides continuous monitoring and early warning of leaks.
