General
-
Electromagnetic metering pump, EJ-R series, designed for precise chemical injection at an affordable cost.
-
Operates with a universal power supply (100-240 VAC), allowing use in most countries without adaptation.
-
Compact and easy to handle.
Performance
| Parameter | Typical values |
|---|---|
| Maximum flow rate | Up to 12.0 L/h depending on the model |
| Maximum discharge pressure | Around 1.2 MPa (≈ 12 bar) for the strongest versions |
| Operating speed / stroke rate | 1 to 360 strokes per minute (spm), ensuring high accuracy and wide turndown ratio |

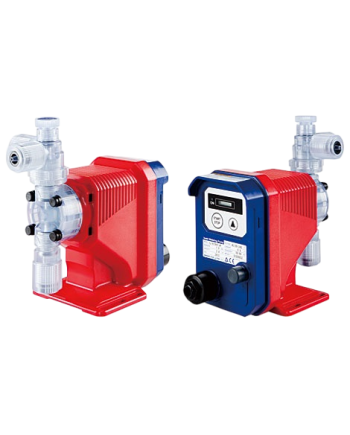

EJ-R dosing pump
General
-
Electromagnetic metering pump, EJ-R series, designed for precise chemical injection at an affordable cost.
-
Operates with a universal power supply (100-240 VAC), allowing use in most countries without adaptation.
-
Compact and easy to handle.
Performance
| Parameter | Typical values |
|---|---|
| Maximum flow rate | Up to 12.0 L/h depending on the model |
| Maximum discharge pressure | Around 1.2 MPa (≈ 12 bar) for the strongest versions |
| Operating speed / stroke rate | 1 to 360 strokes per minute (spm), ensuring high accuracy and wide turndown ratio |
€0.00
Tax included
Materials & construction
-
Wetted parts available in PVC, PVDF, or resistant alloys such as HC276 (Hastelloy) for aggressive chemicals.
-
Valves made of ceramic, seals in EPDM or FKM, diaphragm in PTFE + EPDM depending on the version.
Operating conditions
-
Ambient temperature: 0-40 °C
-
Liquid temperature: 0-40 °C
-
Protection: IP65 equivalent housing, with digital display and control keypad integrated in the drive enclosure.
Control modes
-
Manual: direct setting via keypad, start/stop mode.
-
External signal (EXT): pulse input control, external start/stop possible.
-
External STOP function available.
