The Oxyplus is a self-contained oxygenation system designed to efficiently enrich water with pure oxygen, improving fish health and growth in aquaculture.

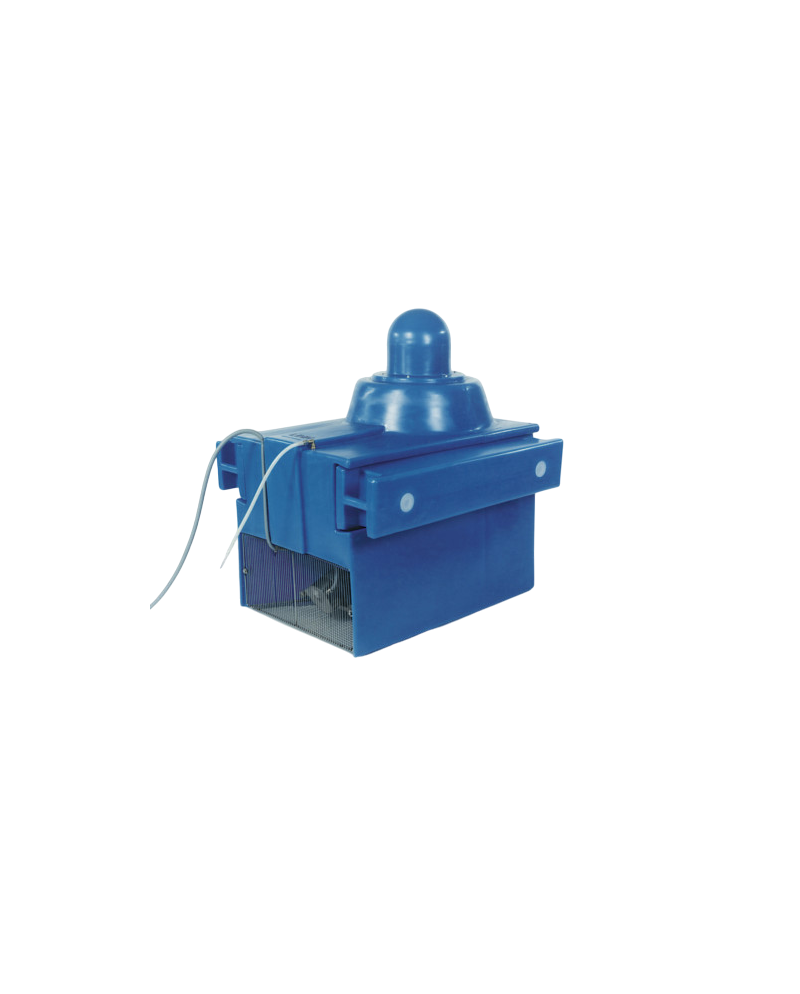

OXYPLUS oxygenator
The Oxyplus is a self-contained oxygenation system designed to efficiently enrich water with pure oxygen, improving fish health and growth in aquaculture.
€0.00
Tax included
-
Optimal efficiency: Water enrichment from 4 to 10 mg/l of oxygen, depending on the model and operating conditions.
-
Compact and robust design: Stainless steel housing, reinforced plastic floats, reliable submersible motor.
-
Easy installation: Delivered ready-to-use with floats and oxygen flow meter.
-
Available models: From 0.10 to 0.75 kW, suitable for ponds 0.90 to 1.50 m deep.
-
Applications: Suitable for fish farms, hatcheries, fattening ponds, and breeding tanks.
-
Additional features: Almost silent operation, low energy consumption, anti-clogging intake grille, anti-blockage design.
| Modèle |
1 |
2 | 3 | 4 |
| OXYPLUS |
OXYPLUS 10 |
OXYPLUS 25 |
OXYPLUS 55 |
OXYPLUS 75 |
| Reference | E191000 | E192000 | E0193000 | E0194000 |
| O2- supply | 16 l/min | 25 l/min | 17 l/min | 25 l/min |
| Motor speed | 2900 tr/min | 1400 tr/min | 1400 tr/min | 1400 tr/min |
| Power | 155 W - 230V/50Hz | 400W - 230V/50Hz | 800W - 230V/50Hz | 1100W - 230V/50Hz |
| Motor |
0.1 kW | 0.25 kW | 0.55 kW | 0.75 kW |
| Lenght-Width-Height (mm) |
D.300 | D.1050 x H1100 | 1000-1050-1200 | 1000-1050-1200 |
| Weight(kg) | 20 | 35 | 50 | 50 |
| (*) Empirical value at 70% efficiency | ||||
| (**) Other voltages available on request | ||||
