A vertical multistage pump is a centrifugal pump composed of several stages (impellers or chambers) arranged vertically. Each stage gradually increases the fluid pressure, allowing the pump to reach high heads. It is designed for pumping clean (non-loaded) liquids and is ideal for applications requiring high pressure with moderate flow rates.

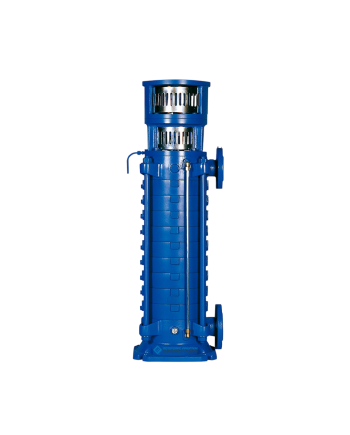

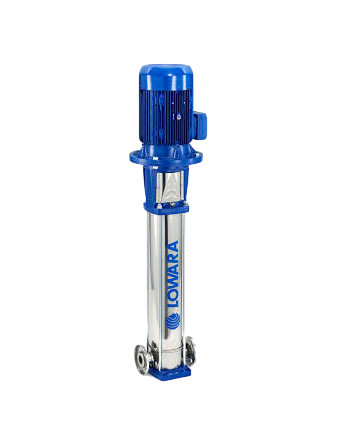

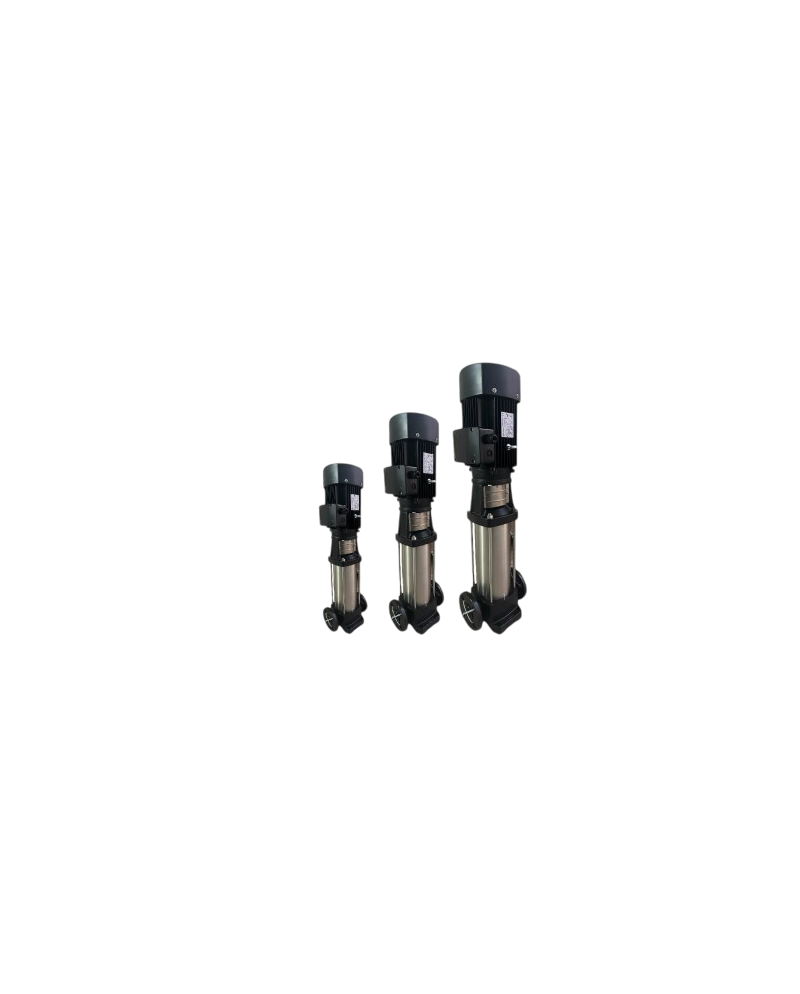

Vertical Multistage Pump
A vertical multistage pump is a centrifugal pump composed of several stages (impellers or chambers) arranged vertically. Each stage gradually increases the fluid pressure, allowing the pump to reach high heads. It is designed for pumping clean (non-loaded) liquids and is ideal for applications requiring high pressure with moderate flow rates.
€0.00
Tax included
Technical Features:
-
Type: Vertical multistage centrifugal pump
-
Orientation: Vertical shaft, inlet and outlet generally in-line
-
Materials: Stainless steel, cast iron, bronze (depending on the fluid)
-
Number of stages: From 2 to 20+ depending on the model
-
Typical flow rate: Up to 180 m³/h
-
Head: Up to 300 m or more
-
Fluid temperature: Up to 120 °C (depending on seals and materials)
-
Max pressure: Up to 40 bar
-
Sealing: Standard or special mechanical seal
-
Installation: Compact, vertical, ideal for confined spaces
Typical Applications:
-
Pressure boosting systems (booster)
-
Potable water supply
-
Water treatment installations
-
RAS
-
Aquariology
Advantages:
-
Very high pressure with minimal footprint
-
High energy efficiency
-
Quiet operation
-
Easy maintenance (modular stage design)
-
Ideal for vertical installations or limited floor space
