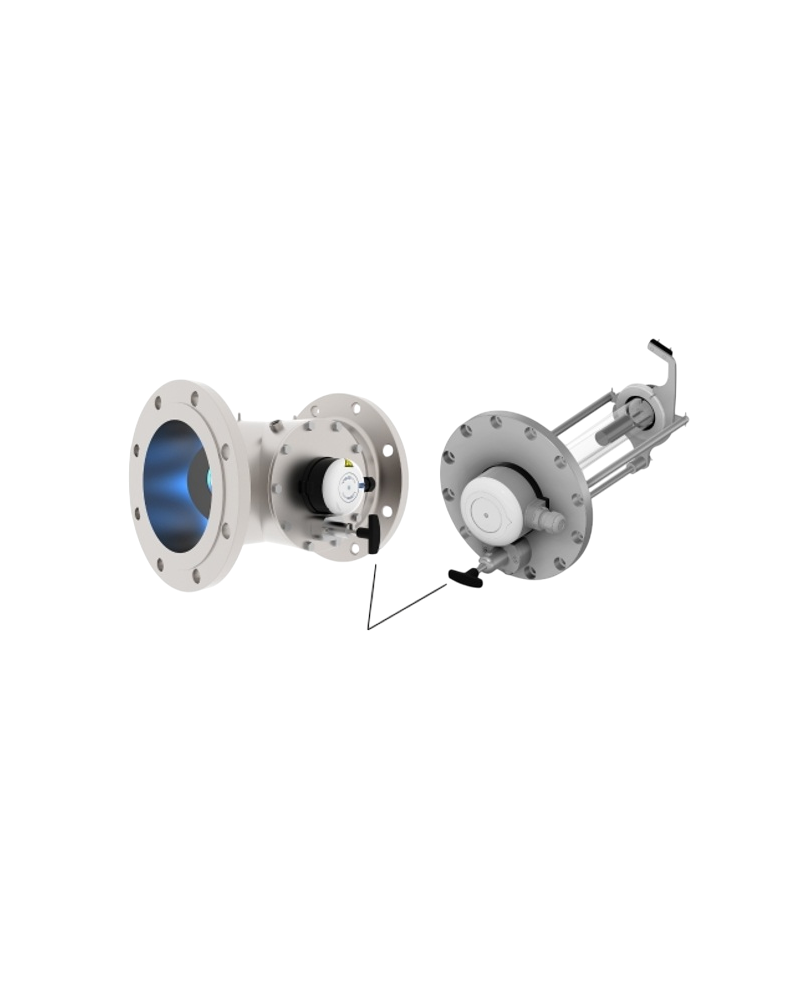

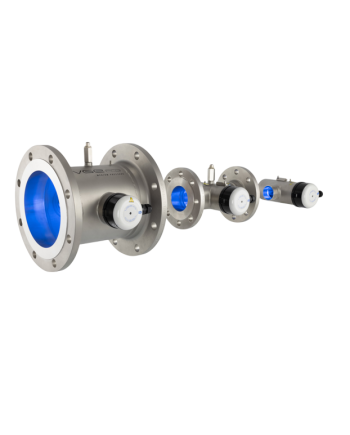

Multimax UV sterilizer

Medium Pressure UV Sterilizer – Multimax

Main Function:

The Multimax UV sterilizer uses medium-pressure UV lamps to disinfect water by effectively eliminating pathogenic microorganisms (bacteria, viruses, algae, etc.).

Key Technical Features:

• Medium-pressure UV technology:

  • Emits a broad UV spectrum (200 to 600 nm) for action against a wide range of contaminants.

  • Highly effective in breaking down chloramines (mono-, di-, and trichloramines).

• Water flow rate: Suitable for high flow rates, ranging from 15 to 100 m³/h (depending on the model).

• Multilamp design:

  • Up to 4 medium-pressure UV lamps per unit for greater flexibility and efficiency.

  • UV power optimized according to treatment needs.

• 316L stainless steel reactor: Corrosion-resistant and long-lasting, compliant with standards for public facilities.

• Smart control panel:

  • Digital display of operating parameters.

  • Continuous monitoring of UV intensity, temperature, flow, etc.

  • Integrated alarms for preventive maintenance.

• Automatic cleaning system (optional depending on version):

  • Mechanical or hydraulic cleaning of quartz sleeves to maintain consistent efficiency without manual intervention.

Main Advantages:

• Disinfection without adding chemicals.

• Reduction of disinfection by-products (such as chloramines).

• Improved water quality (clearer, healthier).

• Cost savings on chemical treatment products.

• Compatibility with existing water treatment systems.

Typical Applications:

• Aquaculture grow-out farms

• RAS circuits

• Hatcheries and nurseries

• Industrial water treatment

• Seawater pumping
