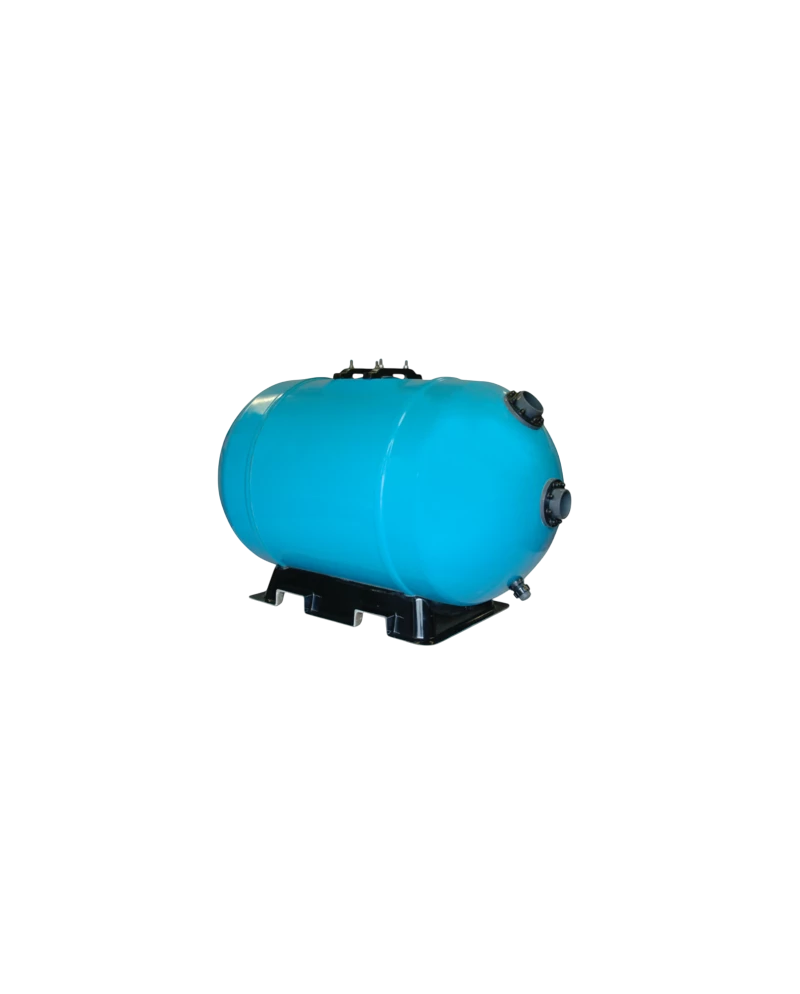

Horizontal filter HZC

The HZC horizontal sand filters (Sureflow model) are high-end equipment designed for aquaculture and aquarium installations requiring a large filtration surface.

Key technical features

• Structure: Horizontal tank made of fiberglass-reinforced polyester, with smooth interior and exterior finish to facilitate cleaning and ensure optimal flow.

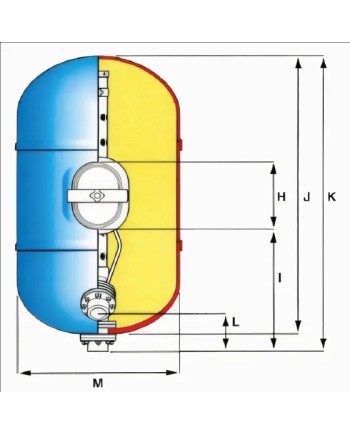

• Dimensions (HZC 42" model):

  • Tank diameter: 1,100 mm

  • Filter bed depth: 650 mm

  • Filtration surface area: 2.0 m²

  • Total length: 2,030 mm

• Filtration capacity:

  • Maximum flow rate: 90 m³/h

  • Filter media:

    • Sand: 950 kg

    • Gravel: 250 kg

• Pressure:

  • Maximum operating pressure: 2.5 bar

  • Test pressure: 4 bar

• Included equipment:

  • Top access hatch for easy maintenance

  • Bottom drain for maintenance and winterization

  • Automatic air release valve

  • Inlet and outlet connections positioned for easy plumbing

HZC Model Advantages

• Space-saving: Horizontal design ideal for technical rooms with height constraints

• Durability: UV- and corrosion-resistant materials ensuring a long lifespan

• Easy maintenance: Convenient access to internal components thanks to the top hatch and well-placed fittings
