IWAKI MD-F series pump

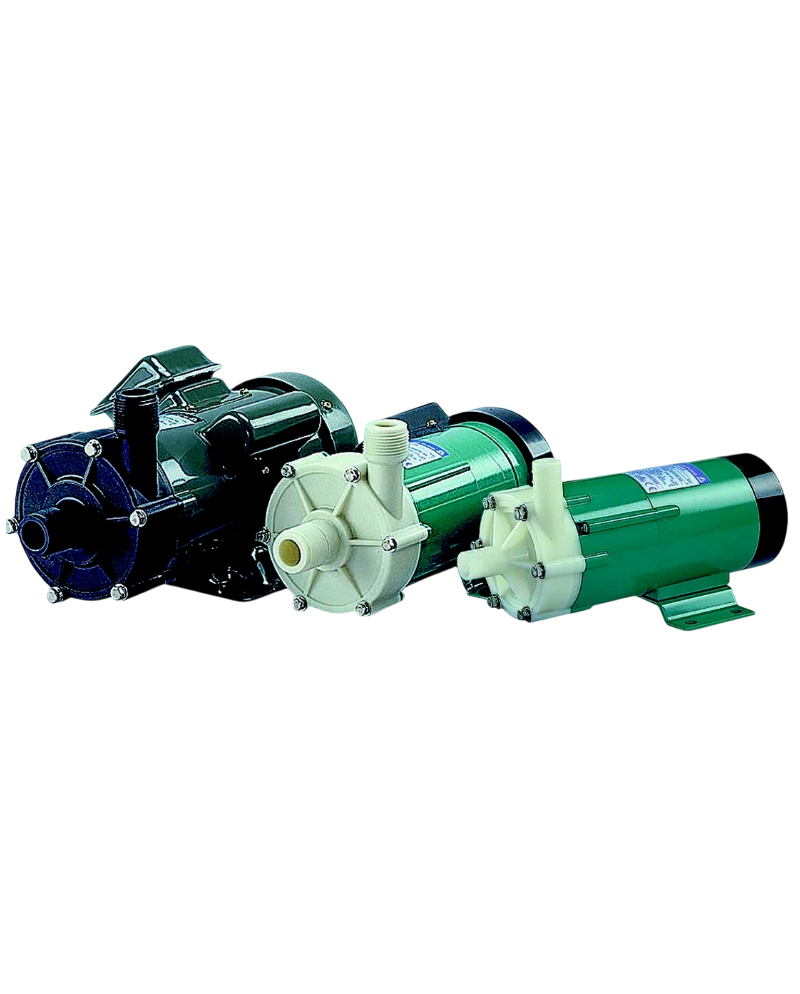

Iwaki MDF Pump

The Iwaki MDF pump is a magnetic drive centrifugal pump designed for the transfer of aggressive and corrosive fluids in demanding industrial environments. It features a robust construction, high chemical resistance, and leak-free operation thanks to its seal-less magnetic drive system.

The MDF series is ideal for applications requiring long service life, enhanced safety, and low maintenance, even under harsh operating conditions such as hot, abrasive, or high-density fluids.

Main Features:

• Pump type: Magnetic drive centrifugal pump (mag-drive)

• Flow rate: Up to approx. 500 L/min (depending on model)

• Head: Up to 30 m

• Wetted materials:

  • Casing: Reinforced ETFE

  • Bearings: Ceramic, carbon, SiC

• Operating temperature: 0 °C to 100 °C

• Fluid density: Up to 1.8

• Motor: Direct coupling, power up to 5.5 kW

• Options: ATEX versions available for explosive atmospheres

Typical Applications:

• Transfer of corrosive chemicals

• Circulation of acids and alkalis

• Surface treatment and electroplating

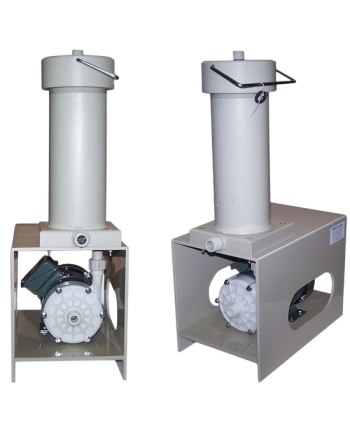

• Chemical filtration systems

• Semiconductor and photovoltaic industries

Advantages:

• Leak-free operation with magnetic drive

• Excellent chemical resistance due to ETFE and inert components

• Low maintenance with minimal wear

• Proven reliability in severe industrial settings

• Compact design and easy installation
