The segmented polyester tank is a modular structure specifically designed for aquaculture installations, both in freshwater and seawater environments. Made of fiberglass-reinforced polyester resin (FRP), this tank offers high mechanical strength, chemical resistance, and durability, even in saline conditions.

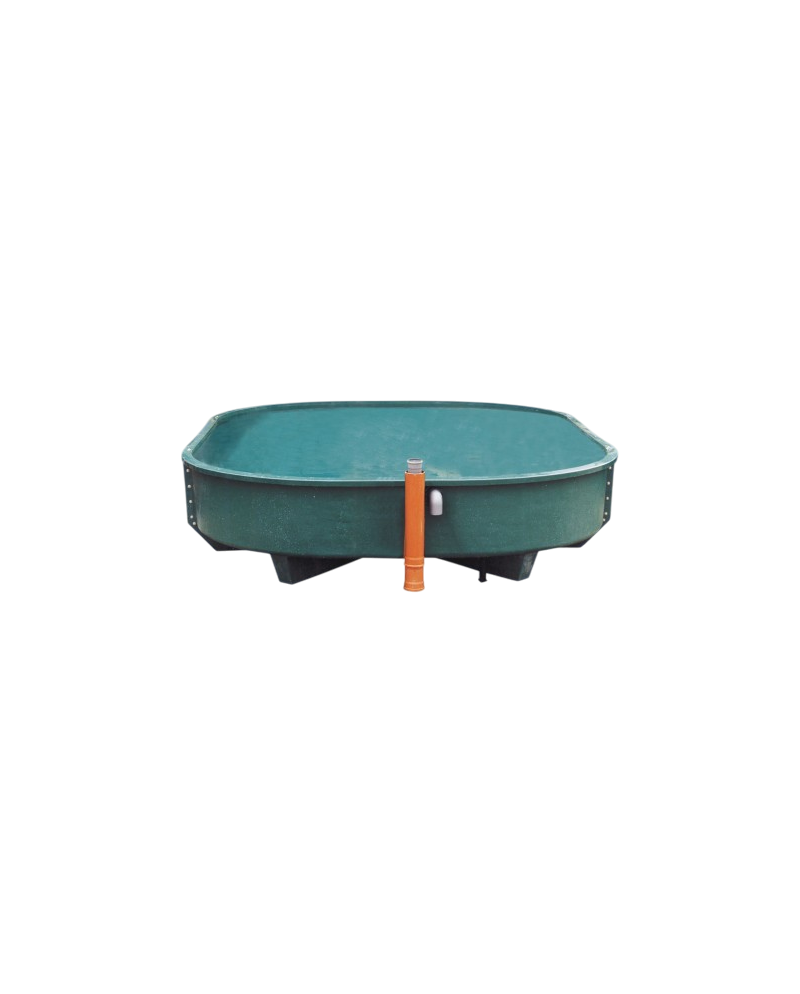

Segmented Polyester Tank for Aquaculture
The segmented polyester tank is a modular structure specifically designed for aquaculture installations, both in freshwater and seawater environments. Made of fiberglass-reinforced polyester resin (FRP), this tank offers high mechanical strength, chemical resistance, and durability, even in saline conditions.
€0.00
These fish tanks are used in fish farming for storage, fry rearing, pre-growing, and growing of various fish species.
FRP tank components with slightly sloped walls, sloped bottom on support beams from two end segments towards a central segment, bottom drain with outlet pipe included, with stainless steel fasteners.
|
Modèle |
Références |
Volume | Lenght - Width - Height (mm) |
Lenght - Width - Height (mm) |
Radius | X-Y | ø | Weight | ||||
|
~m³ -20% |
A | B | r | D | E | F | r | mm | mm | ~kg | ||
| 1 | B0072100 | 11.2 | 5000 | 4000 | 700 | 5200 | 4200 | 1000 | R130 | 25-35 | 110 | 610 |
| 2 | B0072200 | 15.6 | 7000 | 4000 | 700 | 7200 | 4200 | 1000 | R130 | 25-35 | 110 | 810 |
| 3 | B0072300 | 20.0 | 9000 | 4000 | 700 | 9200 | 4200 | 1000 | R130 | 25-35 | 110 | 1015 |
| 4 | B0072400 | 24.6 | 11000 | 4000 | 700 | 11200 | 4200 | 1000 | R130 | 25-35 | 110 | 1215 |
| 5 | B0072500 | 29.1 | 13000 | 4000 | 700 | 13200 | 4200 | 1000 | R130 | 25-35 | 110 | 1420 |
| 6 | B0072600 | 33.6 | 15000 | 4000 | 700 | 15200 | 4200 | 1000 | R130 | 25-35 | 110 | 1620 |
| Accessoires et évacuations à commander séparément | ||||||||||||
Technical Specifications:
-
Material: Fiberglass-reinforced polyester (FRP)
-
Shape: Circular or rectangular depending on the model
-
Segmented structure: Composed of multiple segments assembled on-site for easier transport, installation, and maintenance
-
Capacity: Varies depending on needs (from a few m³ to several dozen m³)
-
Interior finish: Smooth, non-stick surface for easy cleaning and to prevent algae or biofilm growth
-
Optional fittings: Overflow outlets, drain valves, inlet/outlet connections, sensors, aeration or circulation systems
-
Compatibility: Suitable for fish, crustacean, mollusk farming, or for use in RAS (Recirculating Aquaculture Systems)
Advantages:
-
Modularity: Segmented format allows installation in confined or hard-to-access areas
-
Transport efficiency: Segments can be stacked and shipped flat
-
Easy assembly: Quick on-site assembly with watertight seals
-
Durability: Excellent resistance to UV, chemicals, and temperature variations
-
Hygiene: Easy and fast to clean, compliant with aquaculture sanitary standards
B0072100
