Rectangular tank for aquaculture – rearing and storage of aquatic organisms

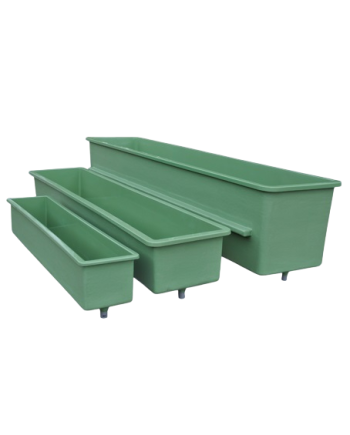

Rectangular Tank for Aquaculture

A rectangular tank is a container with right angles and an elongated shape, specially designed for aquaculture farming. This type of tank is widely used for the storage, growth, and breeding of aquatic organisms such as fish, shrimp, or mollusks

€0.00
Tax included
Couleur
Modèle
Options
Quantity

AQUACULTURE France

Slightly sloped walls, flat bottom, bottom drain with outlet pipe or vertical pipe with FRP (fiberglass reinforced polyester) sleeve, optionally with or without legs.

Measurement tool or guide available below the table.

Models

 With feet without feet Vol.

Lenght-Width-Height (mm)

 Lenght-Width-Height  (mm) Ø
~m³ (-10%) A B C D E F(*) mm
1 B0032100 B0032150 0.57 1300 700 700 1400 800 900 50-110
2 B0032200 B0032250 0.80 1800 700 700 1900 800 900 50-110
3 B0032300 B0032350 0.20 2000 330 330 2100 430 530 50-110
4 B0032400 B0032450 1.50 2200 1500 500 2340 1640 700 50-110
5 B0032500 B0032550 0.11 2500 350 140 2560 410 340 50-110
6 B0032600 B0032650 0.81 2500 600 600 2600 700 800 50-110
7 B0032700 B0032750 2.25 2500 1000 1000 2600 1100 1200 50-110
8 B0032800 B0032850 0.72 2600 620 500 2800 820 600 50-75
9 B0032900 B0032950 0.63 2850 700 350 2990 840 550 -
10 B0033100 B033150 2.10 2900 900 900 3000 1000 1100 50-110
11 B0033200 B0033250 0.60 3000 550 400 3120 670 600 50-110
12 B0033300 B003350 1.32 3000 700 700 3100 800 900 110
13 B0033400 B0033450 1.08 3000 800 500 3200 1000 700 110
14 B0033500 B0033550 1.28 3000 950 500 3200 1150 600 50-110
15 B0033600 B0033650 2.30 3000 950 900 3200 1150 1100 50-110
16 B0033700 B0033750 1.20 3000 1000 450 3160 1160 650 110
17 B0033800 B0033850 3.64 3000 1500 900 3160 1660 1100 -
18 B0034100 B0034150 0.32 3400 430 250 3500 540 350 50-75
19 B0034200 B0034250 1.43 3500 700 650 3700 900 850 110
20 B0034300 B0034350 1.43 3500 900 360 3580 980 560 110
21 B0034400 B0034450 2.50 4300 900 720 4380 980 920 -
22 B0034500 B0034550 3.38 4400 950 900 4600 1150 1100 50-110
23 B0034600 B0034650 2.60 4500 800 800 4660 960 1000 50-110
24 B0034700 B0034750 3.54 4600 950 900 4800 1150 1100 50-110
(*) Hauteur avec pieds ou bonde de fond
Accessoires et évacuations à commander séparément - voir → Bacs bassins → Accessoires et autres produits

Main Features:

  • Shape: Rectangular with right angle

  • Volume: Variable depending on dimensions, often several cubic meters

  • Materials: Rotomolded polyethylene, fiberglass, reinforced PVC, or stainless steel, resistant to corrosion and UV

  • Common colors: Blue, white, gray to facilitate observation of animals and water quality management

  • Equipment:

    • Flat or slightly sloped bottom for easy cleaning

    • Drainage or overflow system

    • Option to add covers, nets, or supports

    • Support or frame options for above-ground installation

Common Uses:

  • Intensive fish farming (growing, fry rearing)

  • Temporary storage or transport of aquatic organisms

  • Studies and observations in a controlled environment

Advantages of the Rectangular Tank:

  • Space optimization for row or series installations

  • Easy cleaning and maintenance

  • Good water circulation and renewal possible with a suitable system

  • Durability and resistance depending on the material used

B0032100
