The X1 cartridge filter is a compact and efficient filtration system, specifically designed for intensive and extensive aquaculture applications. It helps maintain optimal water quality by retaining fine particles and suspended solids, while also simplifying cleaning and maintenance.
Technical Specifications:
-
Filtration type: Mechanical (cartridge-based)
-
Filter cartridge: Replaceable, made of pleated polypropylene or washable polyester
-
Filtration size: Available in 1, 5, 10, 20, or 50 microns
-
Maximum recommended flow rate: Up to 5 m³/h (depending on cartridge)
-
Operating pressure: 1 to 3 bar
-
Connections: Inlet/outlet in 1½” PVC (depending on model)
-
Housing material: Corrosion-resistant polypropylene
-
Mounting position: Vertical
Advantages:
-
Suitable for both freshwater and saltwater
-
Easy cartridge replacement
-
Compact design, ideal for closed or semi-open systems
-
Compatible with Recirculating Aquaculture Systems (RAS)
-
Efficient reduction of organic load before biofiltration

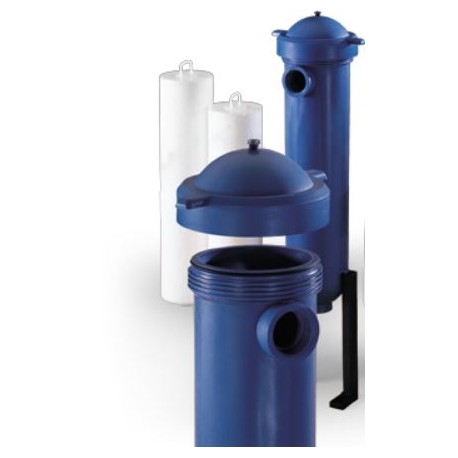

X1 cartridge filter
The X1 cartridge filter is a compact and efficient filtration system, specifically designed for intensive and extensive aquaculture applications. It helps maintain optimal water quality by retaining fine particles and suspended solids, while also simplifying cleaning and maintenance.
Technical Specifications:
-
Filtration type: Mechanical (cartridge-based)
-
Filter cartridge: Replaceable, made of pleated polypropylene or washable polyester
-
Filtration size: Available in 1, 5, 10, 20, or 50 microns
-
Maximum recommended flow rate: Up to 5 m³/h (depending on cartridge)
-
Operating pressure: 1 to 3 bar
-
Connections: Inlet/outlet in 1½” PVC (depending on model)
-
Housing material: Corrosion-resistant polypropylene
-
Mounting position: Vertical
Advantages:
-
Suitable for both freshwater and saltwater
-
Easy cartridge replacement
-
Compact design, ideal for closed or semi-open systems
-
Compatible with Recirculating Aquaculture Systems (RAS)
-
Efficient reduction of organic load before biofiltration
€0.00
Tax included
Filtration fineness: 1 to 100 microns
Treats water types: Freshwater and aggressive (corrosive) water
Equipped with a filter cartridge of:
-
Surface area: 0.26 m²
-
Height: 590 mm
-
Diameter: 140 mm
Fully made of polypropylene:
-
Chemically resistant
Smooth inner walls:
-
Easy to clean
-
Cartridges ensure internal sealing
Tool-free quick-opening lid:
-
Threaded cover
-
Maximum pressure: 6 bar
-
Plate and support in polypropylene
-
Adjustable feet
-
Filter cartridge
Flow rate: 1 to 10 m³/h
-
The flow rate depends on the quantity of suspended matter and the desired filtration fineness
| Models | Info | Matérial | Packing | ||
| 1 | Filter housing | Polypropylène | 1 | ||
| Cartridge |
Microns (µm) |
Matérial | Packing | ||
| 2 | 1 | Polypropylène | 6 pcs | ||
| 3 | 5 | Polypropylène | 6 pcs | ||
| 4 | 10 | Polypropylène | 6 pcs | ||
| 5 | 25 | Polypropylène | 6 pcs | ||
| 6 | 50 | Polypropylène | 6 pcs | ||
| 7 | 75 | Polypropylène | 6 pcs | ||
| 8 | 100 | Polypropylène | 6 pcs |
