The ABOX PE UV sterilizer is specially designed for treating saline waters, providing optimal protection against bacteria, viruses, and microorganisms in aquaculture and marine environments. Its polyethylene construction ensures excellent resistance to corrosion caused by seawater. Compact and robust, it delivers efficient water treatment with flow rates up to 40 m³/h and UV power ranging from 25 to 200 W, perfectly suited for demanding environments.

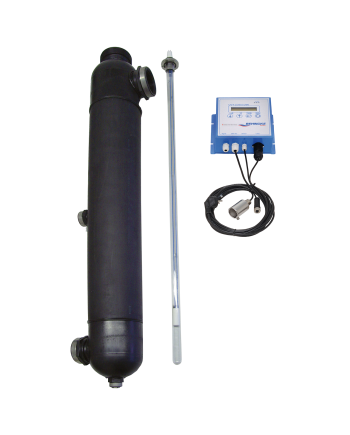

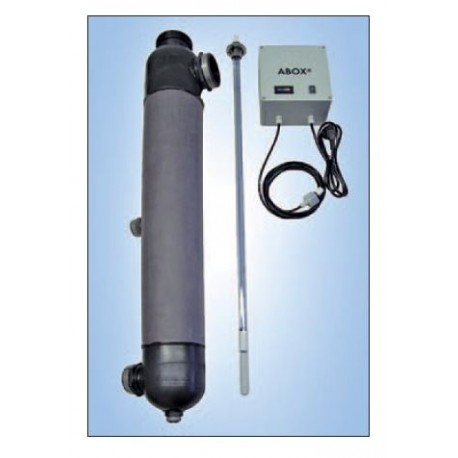

ABOX UV sterilizer HDPE
The ABOX PE UV sterilizer is specially designed for treating saline waters, providing optimal protection against bacteria, viruses, and microorganisms in aquaculture and marine environments. Its polyethylene construction ensures excellent resistance to corrosion caused by seawater. Compact and robust, it delivers efficient water treatment with flow rates up to 40 m³/h and UV power ranging from 25 to 200 W, perfectly suited for demanding environments.
€0.00
Tax included
For use in seawater with a polyethylene (PE) body. Control unit compliant with VDE standards. Delivered complete and ready to use with UV lamp and electrical connection box, 2 m cable, optional UV dose sensor. Power 230V/50Hz~1
| Models |
Reference (*) |
Reference (**) |
Type | m3/h (3*) | m3/h (4*) | Lamp UV | Ø | Lenght - Ø (mm) (5*) | Size (6*) (mm) | Weight (kg) |
| 1 | F0362100 | F0362150 | ABOX® PE25 | 1.8 | 5.2 | 1 x 25 W | R 1" | 650 - Ø90 | 180-182-111 | 4.5 |
| 2 | F0362200 | F0362250 | ABOX® PE64 | 4.0 | 10.0 | 1 x 60 W | R 1 ½" | 1100 - Ø125 | 180-182-111 | 7.5 |
| 3 | F0362300 | F0362350 | ABOX® PE80 | 5.0 | 15.0 | 1 x 80 W | R 2" | 1100 - Ø125 | 180-182-111 | 7.5 |
| 4 | F0362400 | F0362450 | ABOX® PE120 | 5.9 | 25.0 | 1 x 120 W | R 2" | 1100 - Ø125 | 180-182-111 | 8.0 |
| 5 | F0362500 | F0362550 | ABOX® PE200 | 14.5 | 40.0 | 1 x 200 W | R 3" | 1300 - Ø140 | 360-254-165 | 10.0 |
|
(*) sans contrôle UV (**) avec contrôle UV (3*) à dose UV 400 J/m² - T1 cm 96% (4*) à dose UV 250 J/m² - T1 cm 96% (5*) Dimension du réacteur (6*) Coffret électrique sans cobtrôle UV |
||||||||||
