AQUATECTOR - Mikrofloat is an exclusive component of closed-loop or recirculating water systems
The Aquatector Mikrofloat is a device used in aquaculture, designed to improve water quality and fish welfare through a microbubble or nanobubble system. Below is a typical description suited for use in aquaculture settings:
Aquatector Mikrofloat – Description for Aquaculture
The Aquatector Mikrofloat is an innovative microbubble diffusion system specifically developed for intensive and semi-intensive aquaculture. Thanks to advanced microbubble (or nanobubble, depending on the model) generation technology, it provides fine and homogeneous water oxygenation, promoting:
-
Better oxygen absorption by fish and crustaceans;
-
Reduction of organic load and suspended particles through micro-skimming;
-
Stimulation of animal metabolism;
-
Improvement of overall water quality (reduction of ammonia, CO₂, and pathogens).
The Mikrofloat system can be integrated into freshwater or seawater farming tanks. It is often used in combination with biofilters, RAS (Recirculating Aquaculture Systems), or water treatment stations.
Technical Specifications (generic example)
-
Bubble size: 20–100 microns (microbubbles) or <200 nm (nanobubbles depending on configuration)
-
Adjustable air flow
-
Optimized energy consumption
-
Fixed or mobile installation
-
Corrosion-resistant materials (suitable for freshwater or saltwater use)

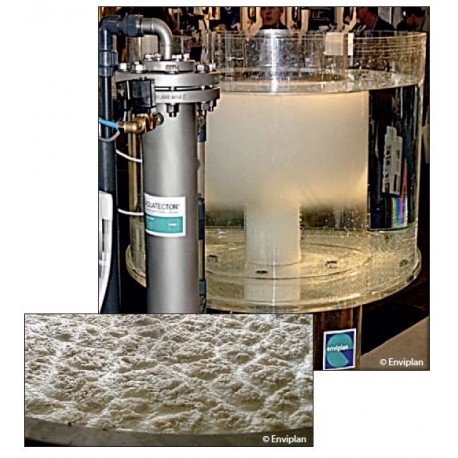

AQUATECTOR microbubble skimmer
AQUATECTOR - Mikrofloat is an exclusive component of closed-loop or recirculating water systems
The Aquatector Mikrofloat is a device used in aquaculture, designed to improve water quality and fish welfare through a microbubble or nanobubble system. Below is a typical description suited for use in aquaculture settings:
Aquatector Mikrofloat – Description for Aquaculture
The Aquatector Mikrofloat is an innovative microbubble diffusion system specifically developed for intensive and semi-intensive aquaculture. Thanks to advanced microbubble (or nanobubble, depending on the model) generation technology, it provides fine and homogeneous water oxygenation, promoting:
-
Better oxygen absorption by fish and crustaceans;
-
Reduction of organic load and suspended particles through micro-skimming;
-
Stimulation of animal metabolism;
-
Improvement of overall water quality (reduction of ammonia, CO₂, and pathogens).
The Mikrofloat system can be integrated into freshwater or seawater farming tanks. It is often used in combination with biofilters, RAS (Recirculating Aquaculture Systems), or water treatment stations.
Technical Specifications (generic example)
-
Bubble size: 20–100 microns (microbubbles) or <200 nm (nanobubbles depending on configuration)
-
Adjustable air flow
-
Optimized energy consumption
-
Fixed or mobile installation
-
Corrosion-resistant materials (suitable for freshwater or saltwater use)
€0.00
Tax included
Operating principle of the Mikrofloat®:
Microbubbles are produced using a patented method that achieves an unparalleled fineness (30-50µm) and are injected into the water. A dense and homogeneous cloud of microbubbles generates a very large interface between the phases, allowing in most cases nearly 100% separation of collectable and filterable substances down to the molecular size.
Advantages compared to other filtration systems:
-
Separation of the smallest particles down to molecular size
-
Continuous operation even when flow rates and concentrations vary
-
No periodic washing required
-
No rinse water needed
-
No clogging, ensuring high operational safety
-
Very high dry extract on the retained fraction
Application in aquaculture:
Water treatment in closed-loop systems
Main components of the system:
Pressurized saturation system, flotation reactor, extraction system, control unit.
| Models | infos | ||
| reference | name | Capacity | |
| 1 | F0182100 | AQ-MI-10 |
10 m3/h |
| 2 | F0182200 | AQ-MI-20 | 20 m3/h |
| 3 | F0182300 | AQ-MI-40 | 40 m3/h |
| 4 | F0182400 | AQ-MI-80 | 80 3/h |
| 5 | F0182500 | AQ-MI-120 | 120 m3/h |
| 6 | F0182600 | AQ-MI-200 | 200 m3/h |
| 7 | F0182700 | AQ-MI-300 | 300 m3/h |
| 8 | F0182800 | AQ-MI-400 | 400 m3/h |
| 9 | F0182900 | AQ-MI-600 | 600 m3/h |
AQUACULTURE FRANCE offers AQUATECTOR - Mikrofloat test units and pilot stations, which can be tested under real conditions on existing closed-loop systems. Based on the results of these tests, appropriate solutions can be selected and accurately priced.
