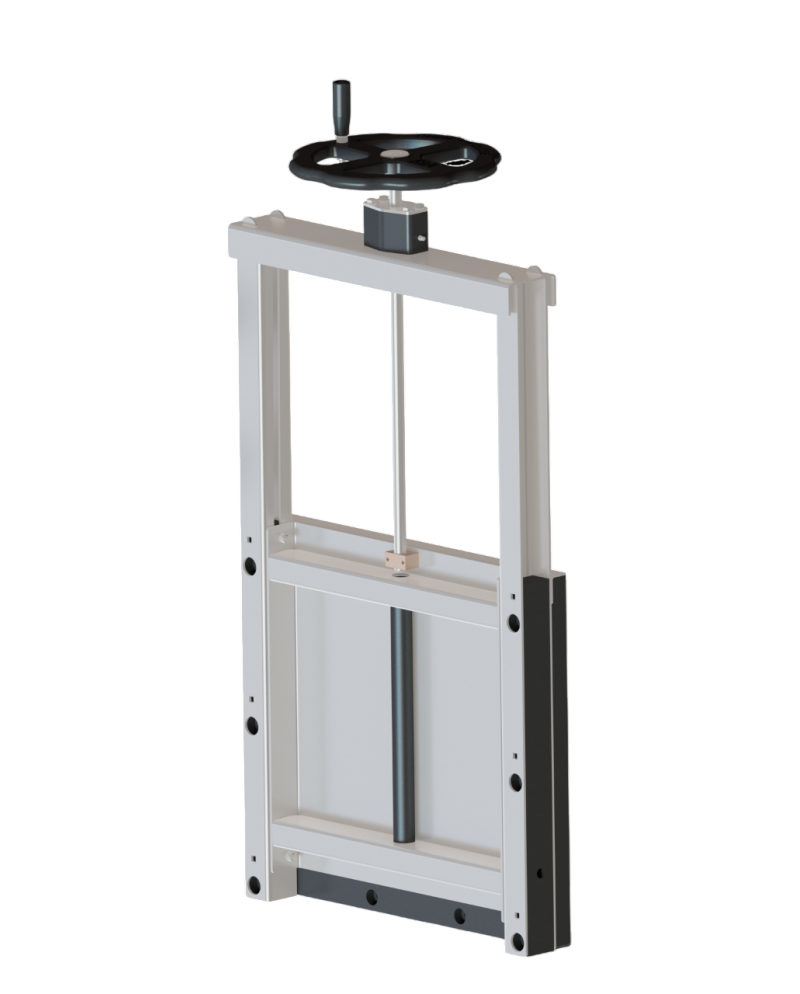

Sluice gate SPK-TG PEHD

Technical Description – SPK-TG Valve

• Type: Guillotine gate valve (sluice gate), designed to regulate or stop fluid flow.

• Applications:

  • Stormwater, industrial/process water, pumping stations, treatment facilities

  • Acts as an emergency valve to prevent pollution downstream of roadways or infrastructure

• Available Configurations:

  • Seat options for unidirectional or bidirectional pressure

  • Vertical outlet through the chamber wall

  • Optional convex flange

  • Non-rising stem for compact design and protection

  • Seamless structure for easy cleaning and maintenance

• Materials:

  • Frame and gate in HDPE

  • Stainless steel side reinforcements (AISI 316 / EN 1.4404)

  • Guillotine and wall seals made from EPDM (Foamseal)

• Sealing System:

  • Bidirectional tight sealing with embedded O-ring in the backplate

  • Integrated sliding track ensures 100% gate closure

• Operation:

  • Protected non-rising stem for smooth actuation

  • Bearings and sliding components enclosed and pressure-lubricated

  • Manual, electric, pneumatic, or hydraulic actuation available

• Performance:

  • Maximum pressure upon request: up to 14 psi (≈ 0.9 bar)

  • Standard water head resistance: 6 m H₂O (~0.6 bar) up to DN 800

• Advantages:

  • Compact, self-supporting frame for wall-mount installation

  • Very low head loss

  • Low maintenance costs: smooth surfaces, corrosion-free, durable materials
