Guillotine Valve – SVM-TG
Main Features
-
Function: Guillotine valve designed to control or shut off the flow of liquids (surface water, wastewater, industrial fluids, aquaculture, agriculture).
-
Unidirectional: Designed to withstand pressure from one side only.
-
Sealing & Self-cleaning: Full bore opening with self-cleaning pocket to ensure tight sealing without debris accumulation.
-
Operation: Non-rising stem, manual operation via handwheel; electric, pneumatic, or hydraulic actuators optional. Low operating torque.
-
Installation: HDPE liner mounting for buried networks or lift stations; connection by socket, flange, or butt welding.
-
Materials:
-
Body: PE (polyethylene)
-
Knife gate: stainless steel AISI 316 (EN 1.4404)
-
Stem: stainless steel EN 1.4571 (316Ti)
-
Reinforcements: stainless steel 316
-
Seals: EPDM
-
Stem nut: CuSn12 (bronze)
-

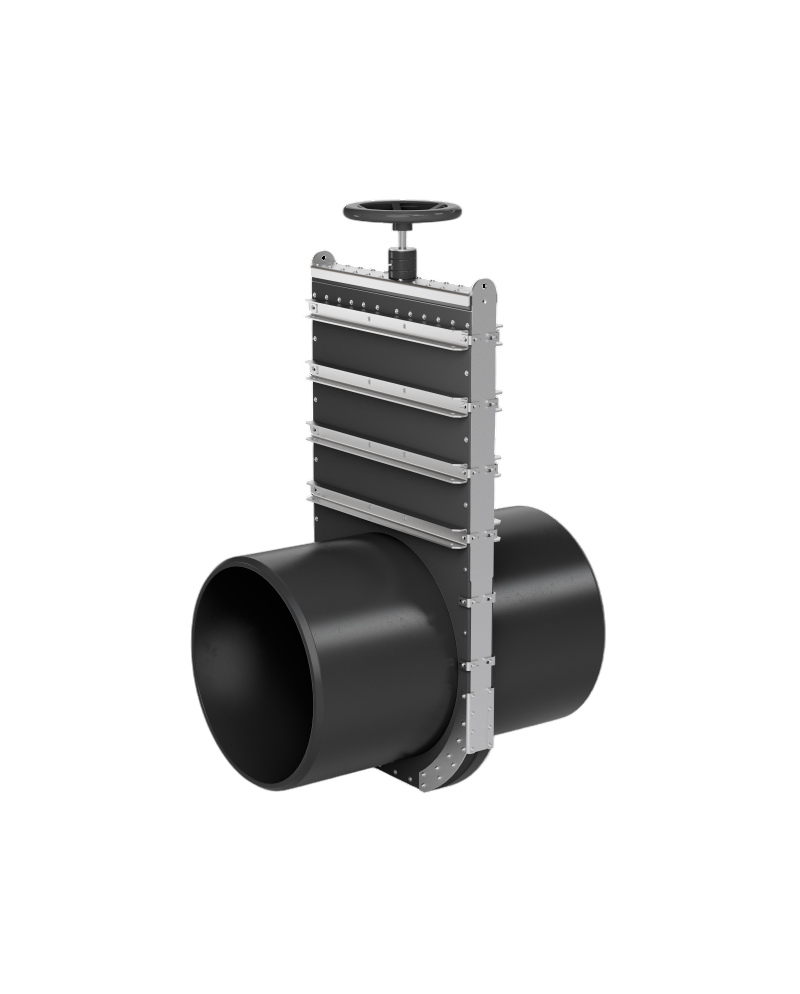

Gate valve SVM TG-PEHD
Guillotine Valve – SVM-TG
Main Features
-
Function: Guillotine valve designed to control or shut off the flow of liquids (surface water, wastewater, industrial fluids, aquaculture, agriculture).
-
Unidirectional: Designed to withstand pressure from one side only.
-
Sealing & Self-cleaning: Full bore opening with self-cleaning pocket to ensure tight sealing without debris accumulation.
-
Operation: Non-rising stem, manual operation via handwheel; electric, pneumatic, or hydraulic actuators optional. Low operating torque.
-
Installation: HDPE liner mounting for buried networks or lift stations; connection by socket, flange, or butt welding.
-
Materials:
-
Body: PE (polyethylene)
-
Knife gate: stainless steel AISI 316 (EN 1.4404)
-
Stem: stainless steel EN 1.4571 (316Ti)
-
Reinforcements: stainless steel 316
-
Seals: EPDM
-
Stem nut: CuSn12 (bronze)
-
€0.00
Tax included
For non-pressurized piping, one sealed side, Viton gasket.
All knife gate valves are available as an option in a seawater version with customized fittings (fixed flanges, loose flanges, sleeve or nozzle) and also in pneumatic or electric versions, upon request.
| Models | Reference | Infos |
| 1 | R0760100 | DN100 - max. 6.0 bar, métal part: EN 1.4301 |
| 2 | R0760200 | DN125 - max. 6.0 bar, métal part: EN 1.4301 |
| 3 | R0760300 | DN150 - max. 6.0 bar, métal part: EN 1.4301 |
| 4 | R0760400 | DN200 - max. 6.0 bar, métal part: EN 1.4301 |
| 5 | R0760500 | DN250 - max. 6.0 bar, métal part: EN 1.4301 |
| 6 | R0760600 | DN300 - max. 6.0 bar, métal part: EN 1.4301 |
| 7 | R0760700 | DN400 - max. 2.0 bar, métal part: EN 1.4301 |
| 8 | R0760800 | DN500 - max. 2.0 bar, métal part: EN 1.4301 |
| 9 | R0760900 | DN600 - max. 2.0 bar, métal part: EN 1.4301 |
