The Waterco SMDD sand filter is a side-mount model offering deep bed filtration with a high-quality fiberglass reinforced polyester (FRP) tank. This design ensures increased resistance to UV rays and corrosion, guaranteeing optimal durability in demanding environments.
Key Features:
-
FRP tank: seamless and joint-free, eliminating risks of corrosion and electrolysis.
-
Filter bed depth: up to 1200 mm, allowing effective retention of fine particles and colloidal substances.
-
Balanced hydraulic side system: optimizes water flow and filtration efficiency.
-
6-position multiport valve (optional): with sight glass and quick unions for easy maintenance.
-
Pressure range: from 2.5 to 8 bars, depending on the model, offering flexibility for various applications.
-
Maximum operating temperature: 50°C.
-
Tank sizes: available from 750 mm to 2500 mm diameter, with filter areas ranging from 0.87 m² to 3.14 m².
Advantages:
-
Deep bed filtration: ideal for facilities treating water with fine particles or colloidal substances.
-
Easy maintenance: thanks to the access hatch and optional multiport valve.
-
Robustness: weld-free design reduces corrosion risks.
-
Flexibility: adaptable to a wide range of applications thanks to various sizes and pressure options.
Typical Applications:
-
Public and private swimming pools
-
Aquatic centers and spas
-
Aquariums and marine facilities
-
Industrial installations requiring fine filtration
-
Municipal or commercial water treatment

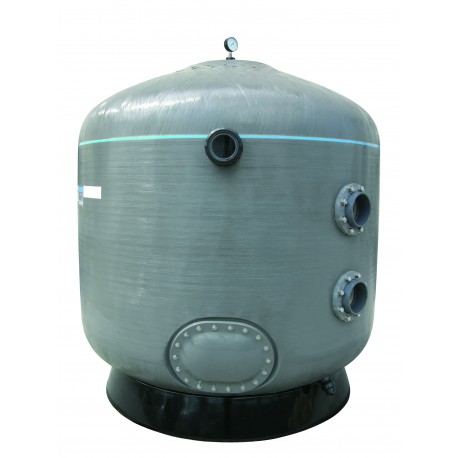

SMDD sandfilter
The Waterco SMDD sand filter is a side-mount model offering deep bed filtration with a high-quality fiberglass reinforced polyester (FRP) tank. This design ensures increased resistance to UV rays and corrosion, guaranteeing optimal durability in demanding environments.
Key Features:
-
FRP tank: seamless and joint-free, eliminating risks of corrosion and electrolysis.
-
Filter bed depth: up to 1200 mm, allowing effective retention of fine particles and colloidal substances.
-
Balanced hydraulic side system: optimizes water flow and filtration efficiency.
-
6-position multiport valve (optional): with sight glass and quick unions for easy maintenance.
-
Pressure range: from 2.5 to 8 bars, depending on the model, offering flexibility for various applications.
-
Maximum operating temperature: 50°C.
-
Tank sizes: available from 750 mm to 2500 mm diameter, with filter areas ranging from 0.87 m² to 3.14 m².
Advantages:
-
Deep bed filtration: ideal for facilities treating water with fine particles or colloidal substances.
-
Easy maintenance: thanks to the access hatch and optional multiport valve.
-
Robustness: weld-free design reduces corrosion risks.
-
Flexibility: adaptable to a wide range of applications thanks to various sizes and pressure options.
Typical Applications:
-
Public and private swimming pools
-
Aquatic centers and spas
-
Aquariums and marine facilities
-
Industrial installations requiring fine filtration
-
Municipal or commercial water treatment
€0.00
Tax included
Standard size 2.5 bar, other options available on request (4.0 bar / 6.0 bar / 8.0 bar)
| Models | Name | Size | Sand (kg) |
Filter area m² |
Bed depth (mm) |
Discharge volume after 5 minutes of backwash
m3 |
|
| Modèle 1 : | SMDD750 (2"/63mm connexion, 200mm vanne) | 30 " | 795 | 0.44 | 1200 | 1.4 | |
| Modèle 2 : | SMDD900 (3"/90mm connexion, 200mm vanne) | 36 " | 1200 | 0.64 | 1200 | 2.1 | |
| Modèle 3 : | SMDD1050 (3"/90mm connexion, 200mm vanne) | 42 " | 1665 | 0.87 | 1200 | 2.9 | |
| Modèle 4 : | SMDD1200 (3"/90mm connexion, 420x320mm vanne) | 48 " | 2045 | 1.13 | 1200 | 3.8 | |
| Modèle 5 : | SMDD1400 (4"/110mm connexion, 420x320mm vanne) | 56 " | 2840 | 1.54 | 1200 | 5.1 | |
| Modèle 6 : | SMDD1600 (4"/110mm connexion, 420x320mm vanne) | 64 " | 3685 | 2.01 | 1200 | 6.7 | |
| Modèle 7 : | SMDD1800 (6"/160mm connexion, 420x320mm vanne) | 70 " | 4975 | 2.55 | 1200 | 8.5 | |
| Modèle 8 : | SMDD2000 (6"/160mm connexion, 420x320mm vanne) | 79 " | 6090 | 3.14 | 1200 | 10.5 | |
| Modèle 9 : | SMDD2350 (6"/160mm connexion, 420x320mm vanne) | 96 " | 8480 | 4.34 | 1200 | 14.4 |
All these filters are wound sand filters.
AQUACULTURE FRANCE offers a complete range of sand filters specially designed and adapted for aquaculture, fish farming, shellfish farming, aquariums, and ponds.
Our sand filters contain no metal parts, making them perfectly suited for treating corrosive waters such as seawater.
Sand filtration is very effective for obtaining clear and transparent water. We guarantee a filtration fineness of 40 microns at the outlet of our sand filters.
We offer molded or wound sand filters. The sizing of sand filters is based on the amount of suspended solids (TSS).
All options are available:
-
Operating pressure from 2.5 to 8 bar
-
All filter diameters up to 3 meters
-
Filters in vertical position for fine filtration and in horizontal position for high flow filtration
-
Sand bed height from 0.4 to 1.2 meters
-
Screen plate (KOK model)
-
Standard or reinforced lateral arms depending on application
-
Connections of 1.5, 2, 3, and 4 inches via multiport valve
-
Connections from 90 to 250 mm via valve manifolds
-
Possible automation of backwashes
-
Differential pressure sensor to monitor filter clogging status
-
Backwash water recycling solutions
